Configuring Public DNS and MX records for exchange 2013

Lets see what are the Public DNS records we need to Configure for Exchange 2013/Exchange 2016 (Client Access / mail flow / Autodiscover)

Create A record – Mail.CareExchange.in

and point to the Exchange 2013 Server or Exchange 2016 Server .

If the server is load balanced – You will have to point to the VIP (Virtual IP of the load balancer)

Which will be the internet facing server for your Webmail and all other URLs

Create a A Record – autodiscover.careexchange.in

and point to the Exchange 2013 Server or Exchange 2016 Server .

If the server is load balanced – You will have to point to the VIP (Virtual IP of the load balancer)

Which will be the internet facing server for your Webmail and all other URLs

Which will serve your outlook and Active Sync phones to send configuration settings automatically.

Create a MX record – and point to the A record you created above for small businesses

Which will serve your mail flow

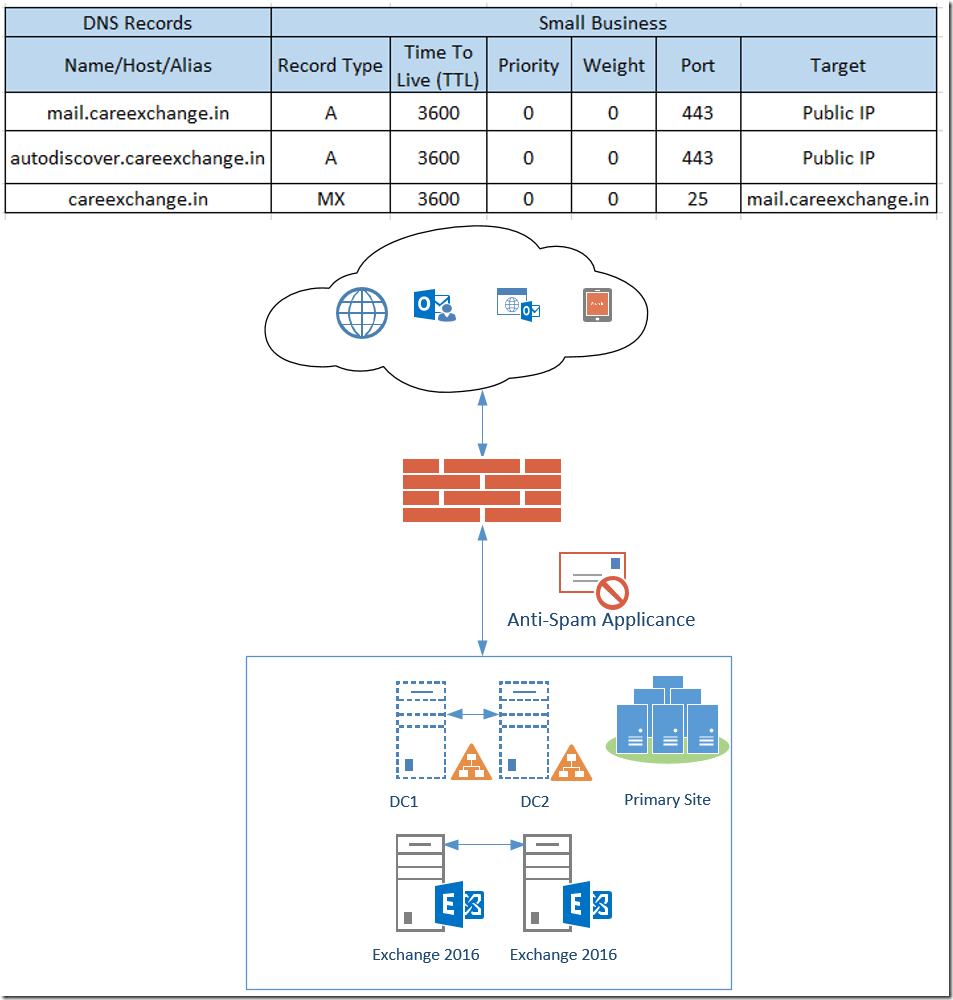

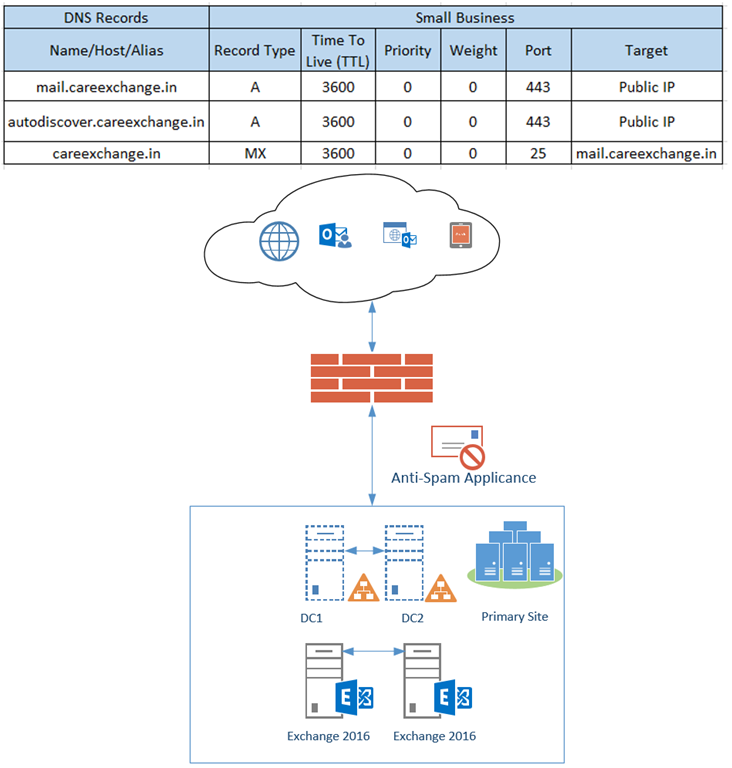

if you are going to use any Cloud based anti – spam or Anti-Spam Appliances . you will have to point it to their DNS Records or your Anti-spam Appliances.

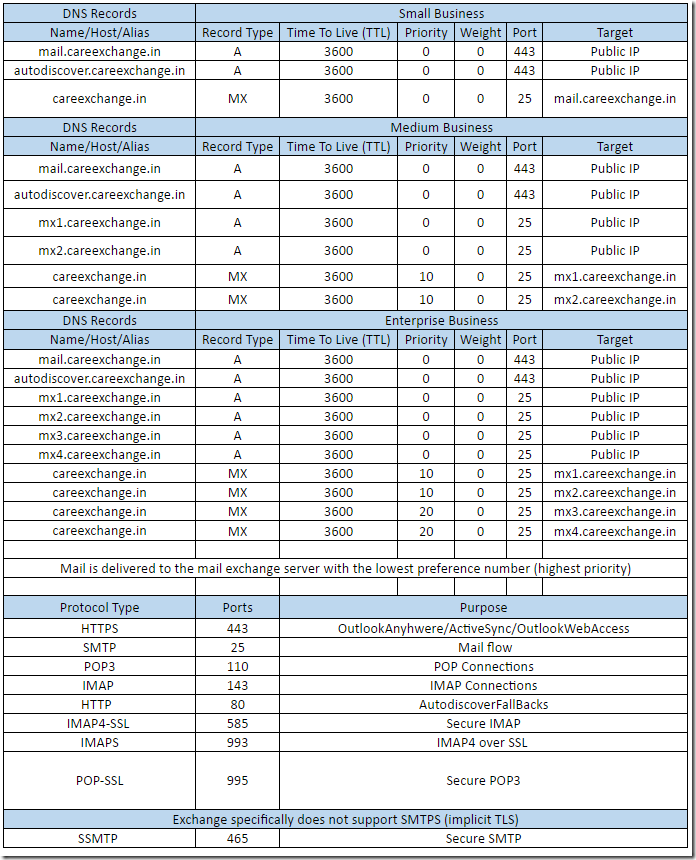

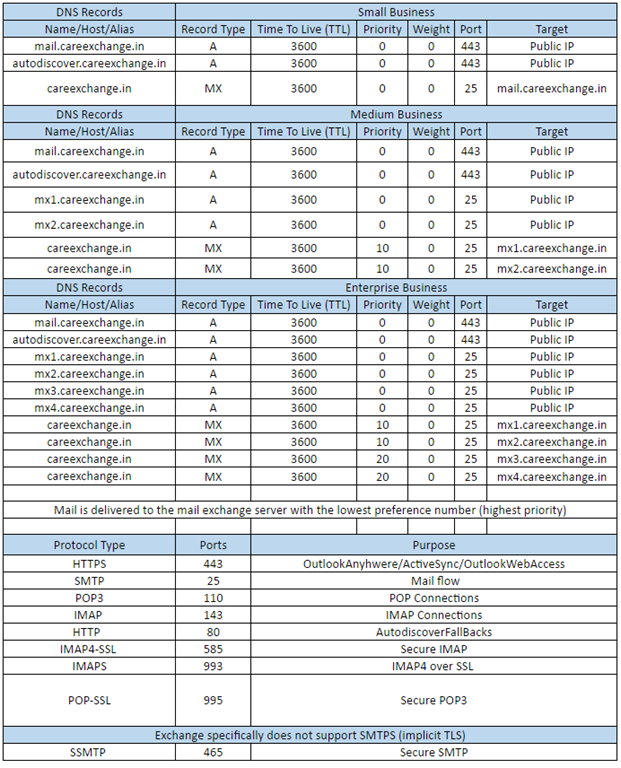

Required Public IPs – 1

Required Public IPs with One Anti-Spam Server – 2

Ports need to be Opened on the firewall

Ports for HTTPS – 443

Port for Mail flow – 25

POP3 – port 110

IMAP – port 143

SMTP – port 25

HTTP – port 80

Secure IMAP (IMAP4-SSL) – port 585

IMAP4 over SSL (IMAPS) – port 993

Secure POP3 (SSL-POP) – port 995

Secure SMTP (SSMTP) – port 465 | Exchange specifically does not support SMTPS (implicit TLS)

Updated – Download as Excel Sheet

Note :

If you want to Split Mail flow and Outlook Web App URL. you can also do that .

You can have outlook web app and other URL’s has mail.careexchange.in

and for mail flow you can have mx.careexchange.in

by doing this – the advantage you can re route your mail flow anytime without disturbing anything .

For Reference :

Lets see a practical scenario on create DNS records with one of the public DNS providers

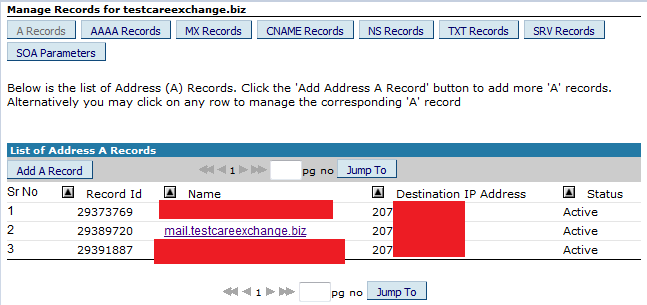

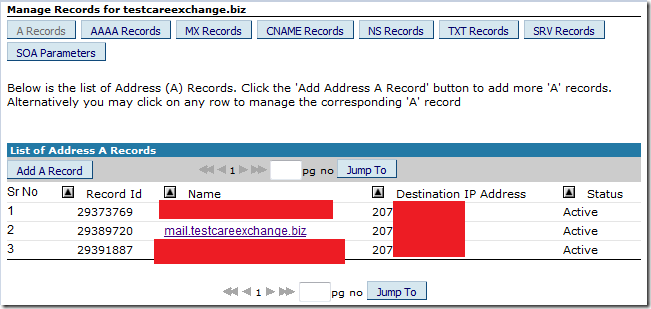

HOST A records – mail.testcareexchange.biz

HOST A records – autodiscover.careexchange.biz

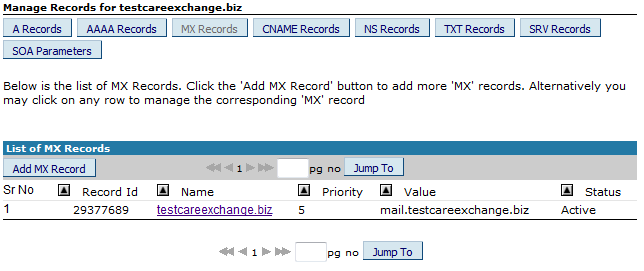

MX Records – Testcareexchange.biz

Note : Mail is delivered to the mail exchange server with the lowest preference number (highest priority)

Thank you .

Hope the article was informative Smile

First of all very thankful to you for posting the above information.

I have setup exchange server 2013((xyz.local) in my local internal server ip 192.168.1.10 and i want access exchange server externally with “xyz.com”.

Can you please let me know the procedure for where can i add my external domain xyz.com in exchange server and which records i need to create in public DNS server and how to map to local internal exchange server..

I am writing the step wise procedure to configure the external dns setup if u find any mistake please rectify it
my public DNS is http://www.xyz.com registred by godaddy.com and have static ip from ISP as 182.76.93.1

1} I need to port forward the below ports from static ip 182.76.93.1 to my local exchange server local ip 192.168.1.10

Ports for HTTPS – 443

Port for Mail flow – 25

POP3 – port 110

IMAP – port 143

SMTP – port 25

HTTP – port 80

Secure SMTP (SSMTP) – port 465

Secure IMAP (IMAP4-SSL) – port 585

IMAP4 over SSL (IMAPS) – port 993

Secure POP3 (SSL-POP) – port 995

2) To access the godaddy.com controal pane and create a host A record http://www.xyz.com.com and associate the static ip 182.76.93.1 to it.

3) then i create a MX record mail.xyz.com associate it with A record.

4) For outlook anywhere i create a A host record owa.xyz.com 182.76.93.1.

This step is ok for external dns setup or anything else is needed.or do i need create DNS records in my local DNS server xyz.local.
