How to Implement Address Book Policies in Exchange 2010 SP2 Effectively

New Series Available for Exchange 2010/2013/2016 – Office365  –

How to Implement Address Book Policies in Office 365/Exchange 2013/2016 Effectively

How to Implement Address Book Policies in Office 365/Exchange 2013/2016 Effectively – Part 2

How to Implement Address Book Policies in Office 365/Exchange 2013/2016 Effectively – Part 3

In Layman’s Term Every Department will See their own Global Address list

Commercial GAL segregation wasn’t been Supported in Exchange 2003 and Exchange 2007

It was supported in HMC 4.5 in Exchange 2007, Where you got to buy a license for it separately

In Exchange 2007 only Internal GAL segregation was supported as per the white paper

http://technet.microsoft.com/en-us/library/bb936719(v=exchg.80).aspx

In spite of more complications

Exchange 2010 Hosting was introduced But No Upgrade will be provided by Microsoft

http://blogs.technet.com/b/exchange/archive/2011/10/13/future-of-hosting-mode.aspx

Now Exchange 2010 SP2 or later is the one of the Best solution for GAL segregation commercially and internally which is more efficient and easy it implement.You need to Perform Some Check Lists before going into implementation of Address Book Policies

1. Address book Policies will work only on Exchange 2010 Service Pack 2 or later.

2. Exchange 2010 should not be installed on a GC or DC , Especially Client Access Server

(Address book policies won’t work for Outlook but It will work for OWA alone,)

3.Any Client Device or Client Software access Active Directory directly  for Directory Access then ABP won’t work Like , Outlook is hard coded to GC & Entourage 2008

4. Outlook clients should be at least – Outlook 2007, Outlook 2010

Outlook 2003 with Latest Service pack does recognize Address book policies but we might face little complications , its my personal experience ,Like , login credentials should be the exact same as the Email Credential

Those are the most important Check lists before you going to implement it

Now will Explain how to Deploy  Address book policies in Different Scenarios as per the TechNet

Before Getting into Address book Policies we should first plan how we are going to Segregate the users

There are Various filters you can use to segregate users ,

Refer Link – http://technet.microsoft.com/en-us/library/bb738157%28EXCHG.80%29.aspx

But we have something called Custom Attributes

We have 14 Custom attributes where we can use to Segregate users

Personally , Segregation is much more easier and Easily manageable using Custom attributes

In Simple Words Experts Prefer Custom Attributes

Now will explain how to segregate users in the below scenario

Scenario 1: Two Separate Companies in One Exchange Organization




First we will plan to segregate the Users

For Organization A , I will use Custom attribute1

Custom attribute1 = OrgA

For Organization B ,  I will use Custom attribute2

Custom attribute2 = OrgB

We got to Create a Separate Address book policy for Every Organization.

Organization A people should not see Organization B People in their Global Address list


We got to Create 4 things for the Organizations to Implement Address Book Policies

1. Global Address list

2. Address list

3. Rooms list

4. Offline Address book

Once we create that we can Assign it to the Users , Every User can have only one Address book policy.

1. Creating a Global Address list

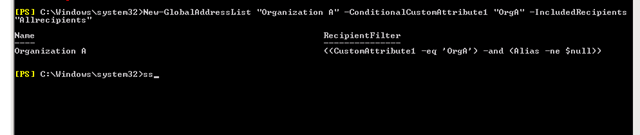

Need Exchange Management Shell to create Global Address list ,

Where users with Custom attribute 1 with value ORGA , Only they will show up in the Global Address list

New-GlobalAddresslist "Organization A" –ConditionalCustomAttribute1 "OrgA" –IncludedRecipients "AllRecipients"


2 . Creating a Address list

Where users with Custom attribute 1 with value ORGA , Only they will show up in the Address list

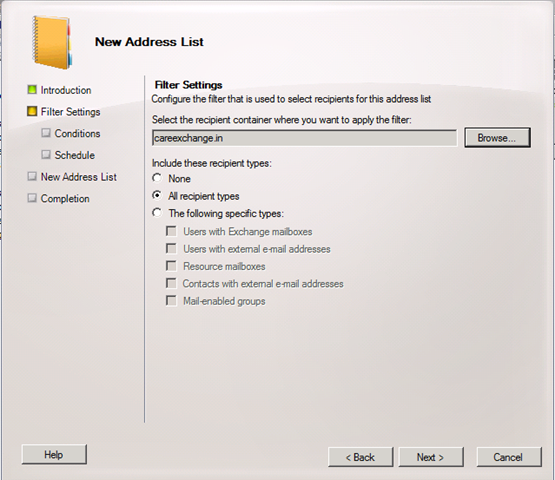

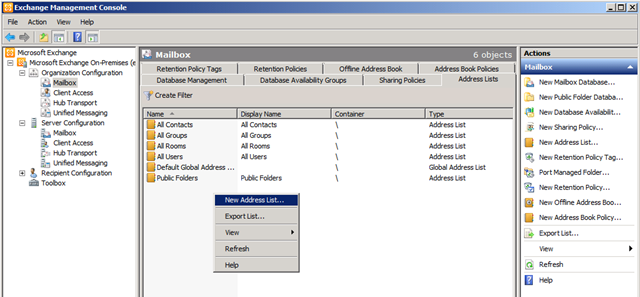

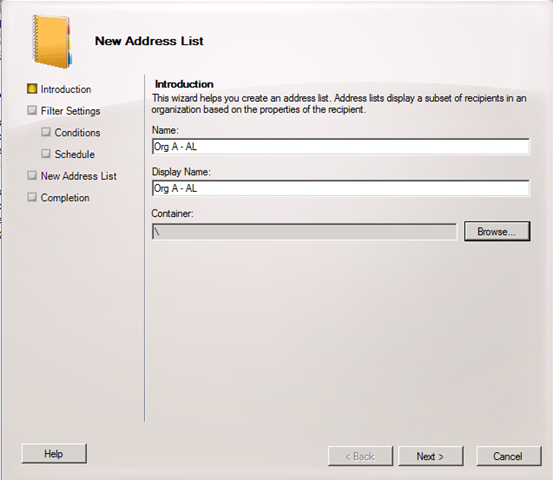

Creating a New Address list for ORGA users


Setting the Domain as Default Domain


Setting the Custom Attribute1 value as ORGA

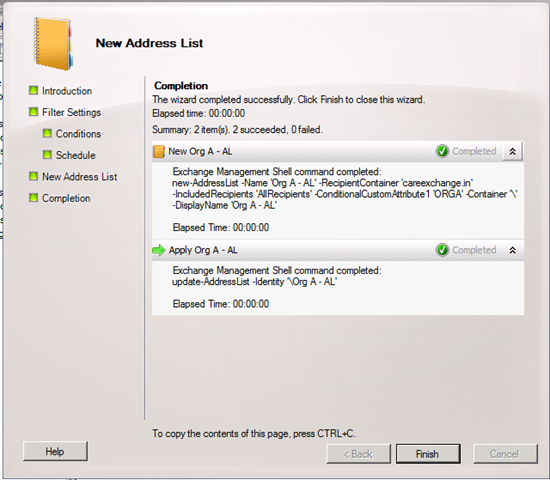

Now Address List have been Created Successfully.

3. Creating a Rooms list

New-AddressList -Name ORGA-Rooms -RecipientFilter {(Alias -ne $null) -and (CustomAttribute1 -eq "ORGA")-and (RecipientDisplayType -eq 'ConferenceRoomMailbox') -or (RecipientDisplayType -eq 'SyncedConferenceRoomMailbox')}


4. Creating Offline Address book

Have a keen look at it , Am not using GUI , Because I want to have the users see the New GAL which I have created for Organization A

Using GUI , I won’t have an option to add the New GAL created

New-OfflineAddressBook -Name "ORGA-OAB" -AddressLists "Organization A"

Created Offline address book Successfully

Am not going to use PF distribution in the OAB properties in the GUI  cause there is no Outlook 2003 clients.

If you still have it , Go ahead and check that option , Make sure you have a PF database

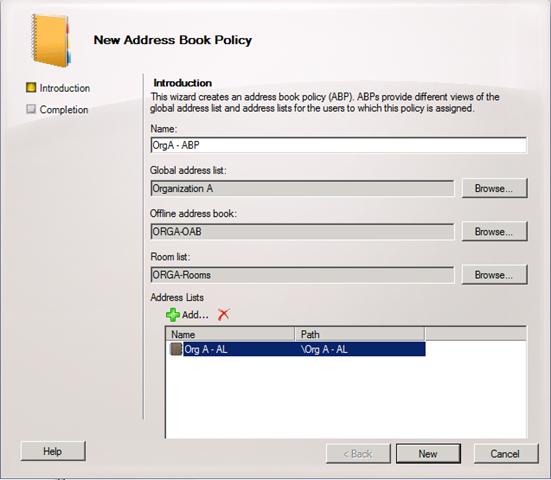

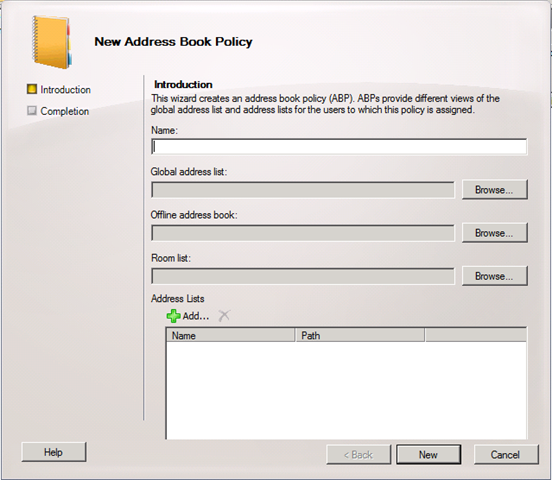

Now Going to Create an Address book Policy for Organization A users

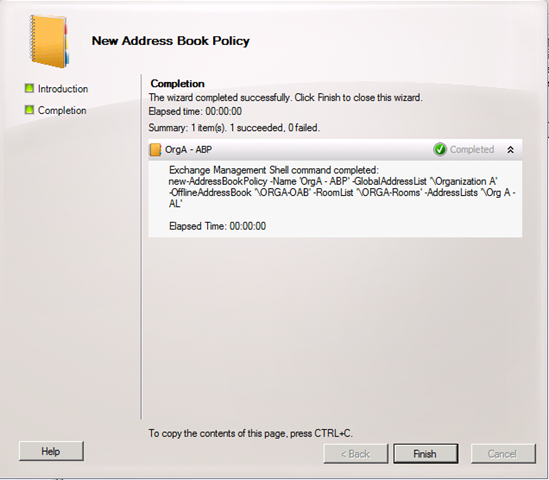

Created an Address book policy successfully !!

Now will Learn how to Apply Custom attributes for Users and other Active Directory objects

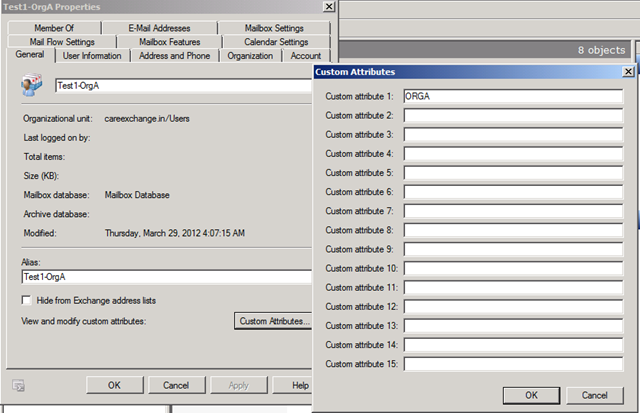

Open Exchange Management Console – Recipient Configuration – Mailbox – Properties of User Mailbox

You can have the Custom Attribute 1 Value Set for One User for Testing Purposes


Or

You can run in Exchange Management Shell

Get-mailbox "User1" | Set-mailbox –customattribute1 "ORGA"

To apply for all the mailboxes –

Get-mailbox | Set-mailbox –customattribute1 "ORGA"

To apply for the Users in a Specific Database –

Get-mailbox –database "Database Name" | Set-mailbox –customattribute1 "ORGA"

Example –

Allocated OrganizationA users  in ORGA-Database

Applying the Custom Attribute in bulk for ORGA users


To Apply for one Distribution group –

Get-DistributionGroup "Group1" | Set-Distributiongroup –customattribute1 "ORGA"

To Apply for one Dynamic Distribution Group –

Get-DynamicDistributionGroup "Group1" | Set-Distributiongroup –customattribute1 "ORGA"

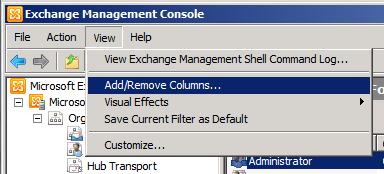

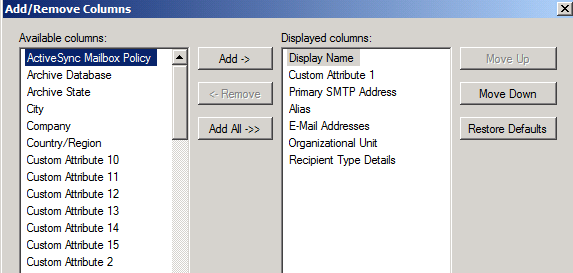

Now to View and Understand Better – Click on View – Add/Remove Columns


Choose Custom Attributes which you want to view in Recipient Configuration

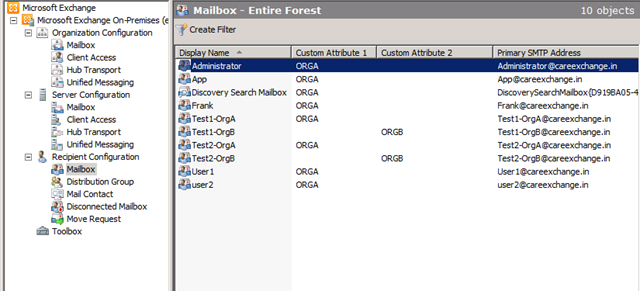

Now you can see the Custom Attribute Values to the Assigned Users

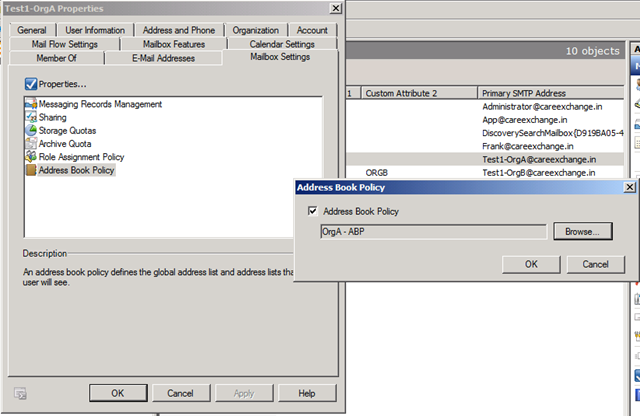

Now we can Apply Address book Policy for a Specific User

Exchange Management Console – Recipient Configuration – Mailbox – Properties of User Mailbox – Mailbox Settings – Address Book Policy


To apply in Bulk for all the Users in a Database

Get-mailbox –Database "Database Name" | set-mailbox –addressbookpolicy ORGA-ABP

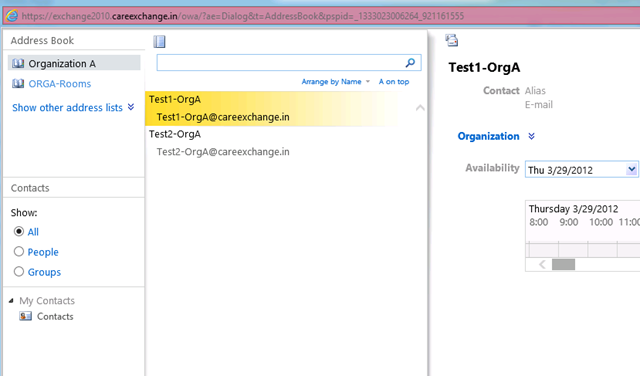

Now Logging into OWA as Test1-ORGA  am seeing ORGA users alone in the Global Address list

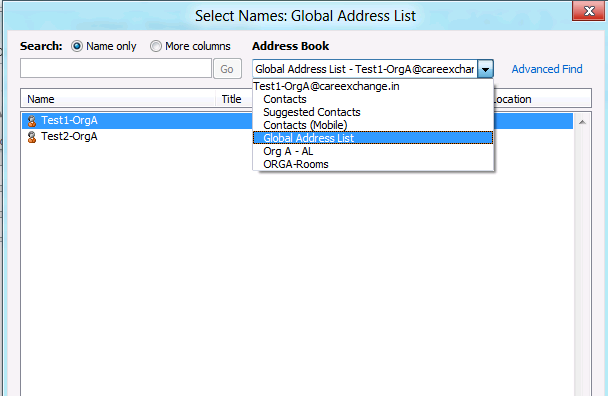

Now Logging into Outlook as Test1-ORGA am seeing ORGA users alone in the Offline Address book


Now Coming in to Email Addresses for the organizations

If you are planning to Give Different Domain Names for this Organizations

Custom attributes will make things Simple for us

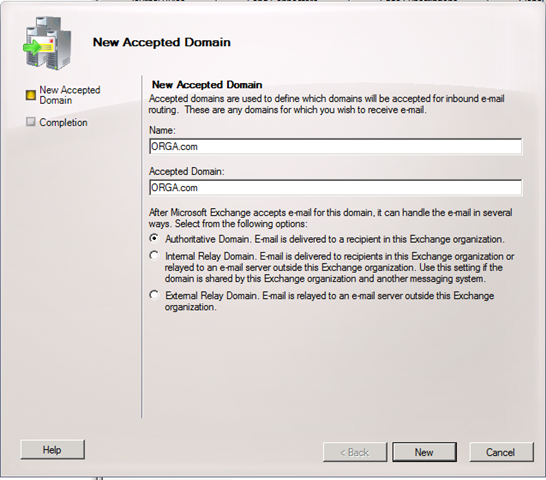

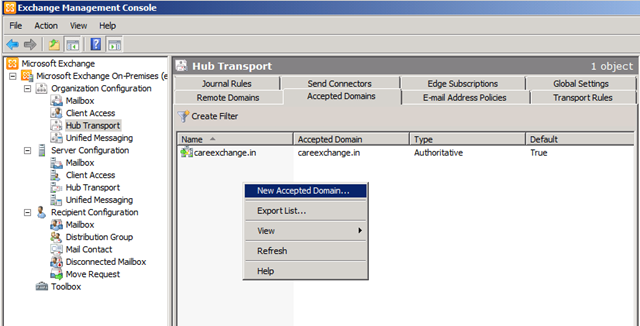

First we will Create a Accepted Domain for ORGA –



Clicking on New will get the Accepted Domain Ready

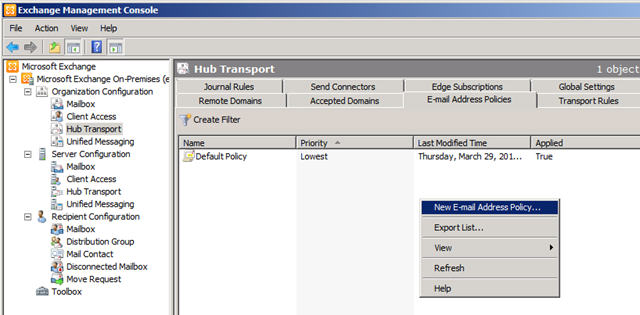

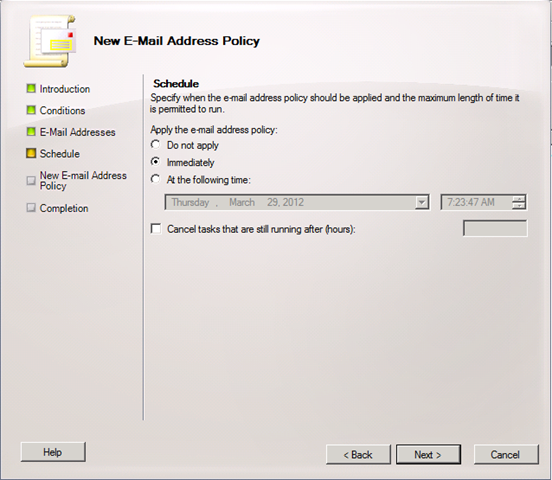

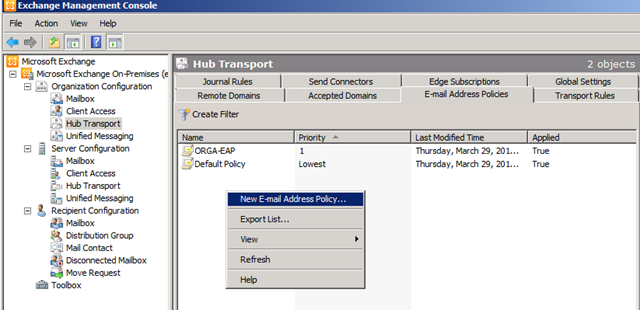

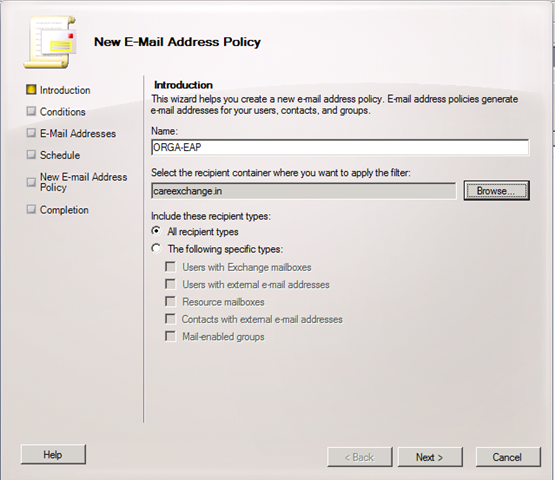

Now will create a Email Address Policy where it will Stamp only for ORGA users

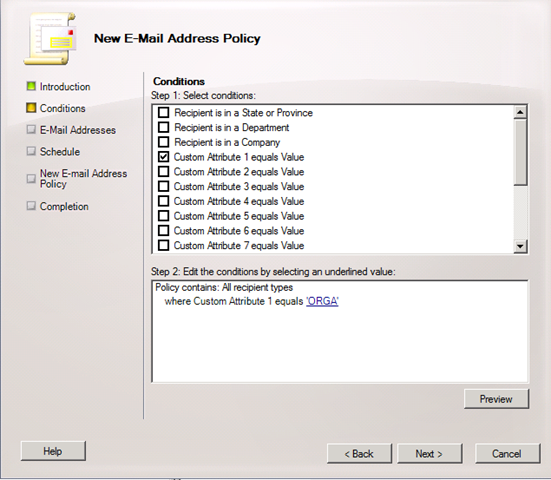

Now stamping Email Address for only ORGA users, CustomAttribute1 – ORGA

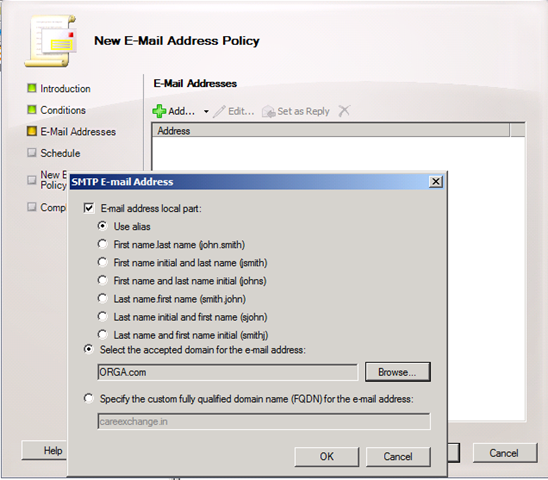

Now Choosing the Accepted Domain –

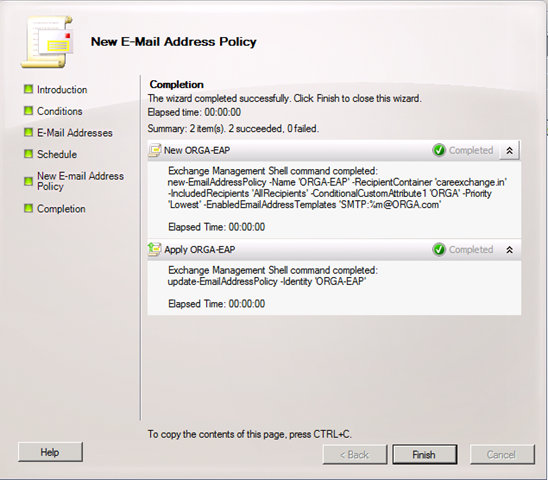

Now you can see that our OrgA users are Stamped with ORGA.com


Great !!

Now ORGA is Ready

Lets make the ORGB ready – Its just the same thing but am going to use CustomAttribute2 as ORGB and going to use Commands as you are familiar now

As We know already we need to Create 4 things for an Organization to Implement Address Book Policies

1. Global Address list

2. Address list

3. Rooms list

4. Offline Address book

1. Global Address list

Creating a Global Address list

Need Exchange Management Shell to create Global Address list ,

Where users with Custom attribute 1 with value ORGA only will show up

New-GlobalAddresslist "Organization B" –ConditionalCustomAttribute2 "OrgB" –IncludedRecipients "AllRecipients"


2. Address list

New-Addresslist ORGB-AL –ConditionalCustomattribute2 ORGB –IncludedRecipients "AllRecipients"


3. Rooms list

New-AddressList -Name ORGB-Rooms -RecipientFilter {(Alias -ne $null) -and (CustomAttribute2 -eq "ORGB")-and (RecipientDisplayType -eq 'ConferenceRoomMailbox') -or (RecipientDisplayType -eq 'SyncedConferenceRoomMailbox')}


4. Offline Address book

New-OfflineAddressBook -Name "ORGB-OAB" -AddressLists "Organization B"

Now will Create an Address Book Policy –

New-AddressBookPolicy -Name "ORGB-ABP" -AddressLists "\ORGB-AL" -OfflineAddressBook \ORGB-OAB -GlobalAddressList "\Organization B" -RoomList "\ORGB-Rooms"


To apply in Bulk for all the Users in a Database –

Get-mailbox –Database "ORGB-Database" | set-mailbox –addressbookpolicy ORGB-ABP

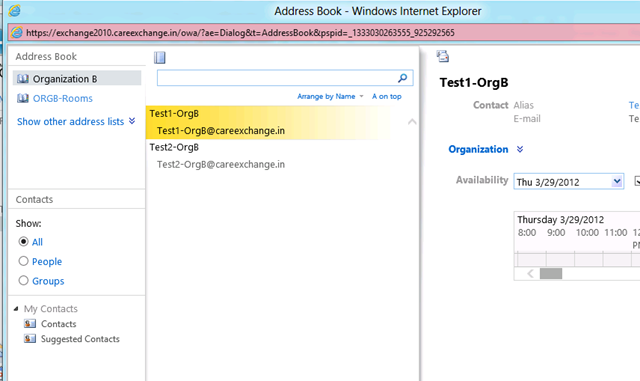

Now Login into Outlook web app as Test1-ORGB am seeing ORGB users alone in the Global Address list

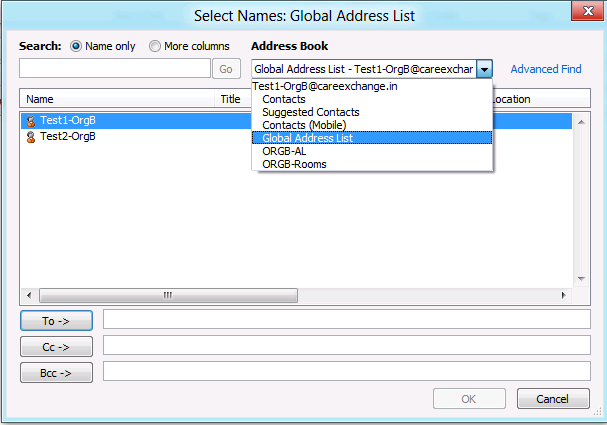

Now Logging into Outlook as Test1-ORGB am seeing ORGB users alone in the Offline Address book


New-AcceptedDomain –name “ORGB.com” –DomainName “ORGB.com” –DomainType “Authoritative”

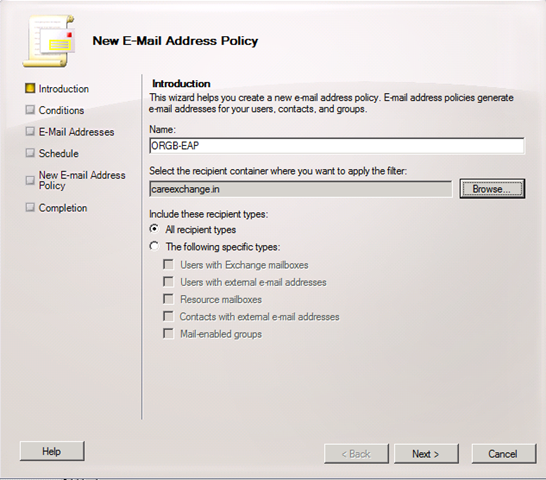

Now Creating an Email Address Policy




Great !

Now Both the Organizations are Ready

And They have been Segregated with different GlobalAddresslist

Will Get Back with More Interesting Scenarios !!
