how to install certificate authority on windows server 2012

Step 1:

You need to have this role installed to have a Certificate Authority , It can be DC or Exchange itself
I have done this in the Exchange Server itself (No Harm)

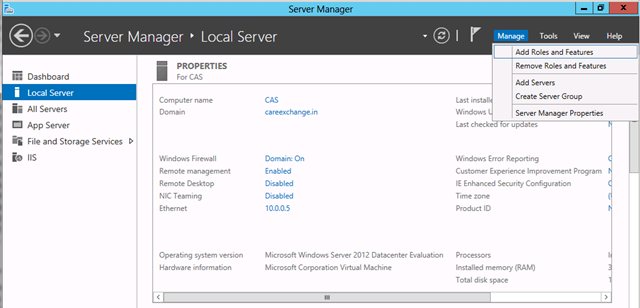

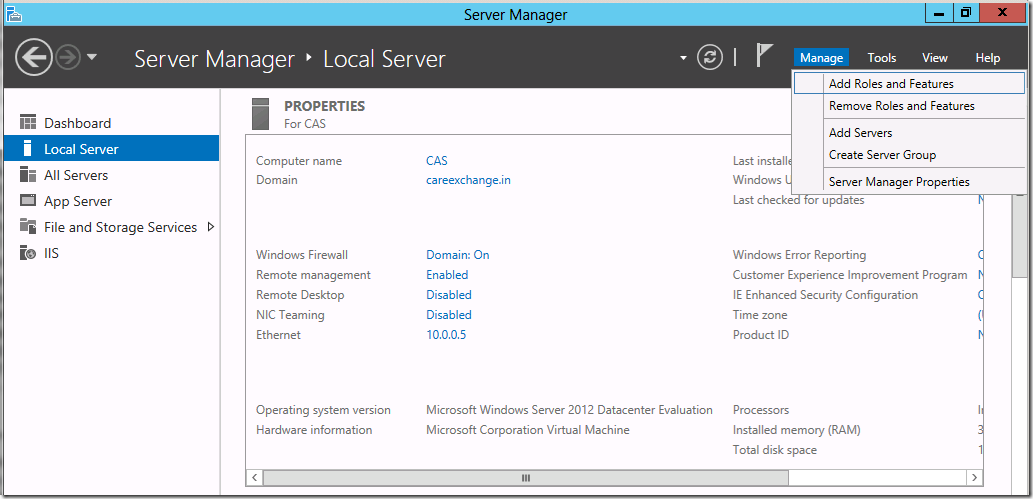

Open Server Manager – Manage – Add Roles and Features

Step 2:

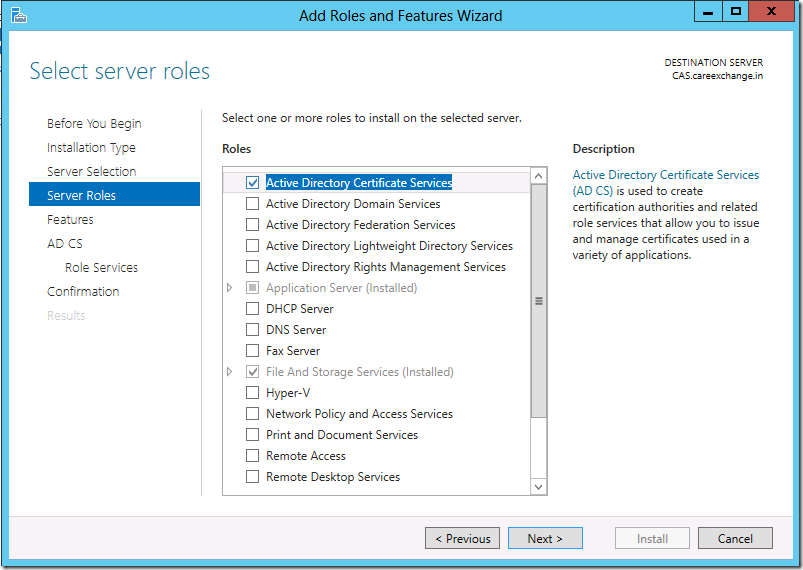

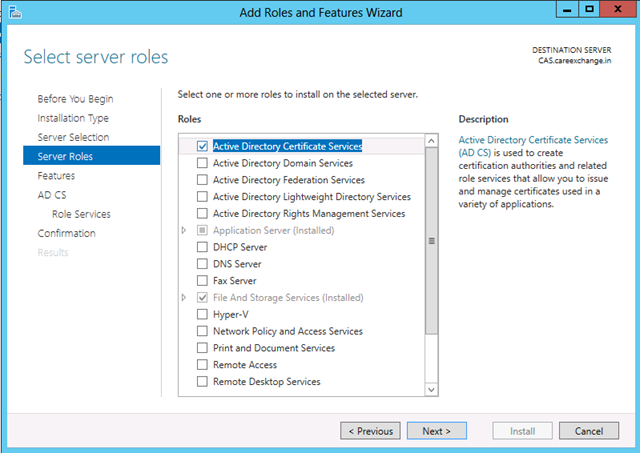

Choose : Active Directory Certificate Services

Choose Next

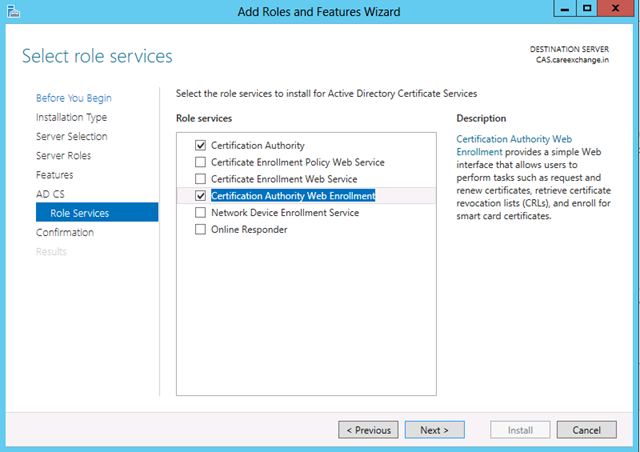

And Choose : Certification Authority Web Enrollment

Choose :

Certification Authority

Certification Authority Web Enrollment

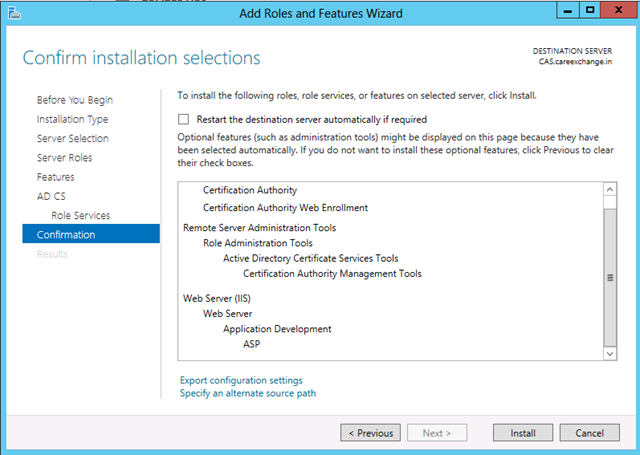

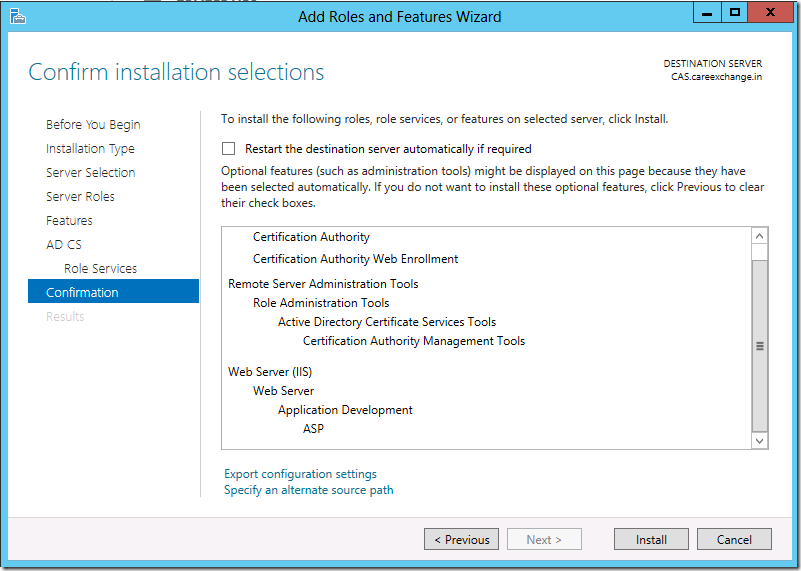

Choose Install

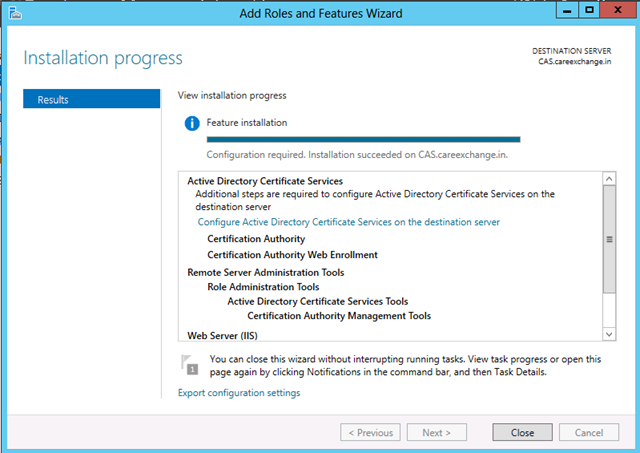

Choose Close

Step 3:

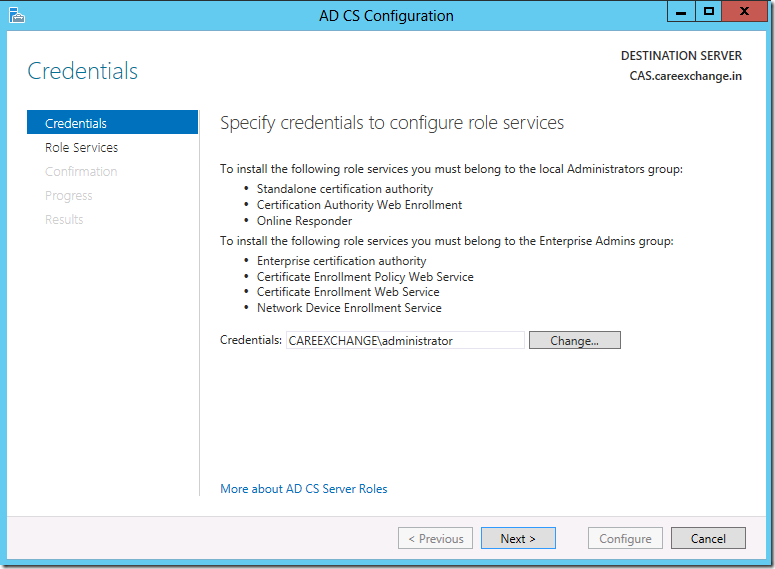

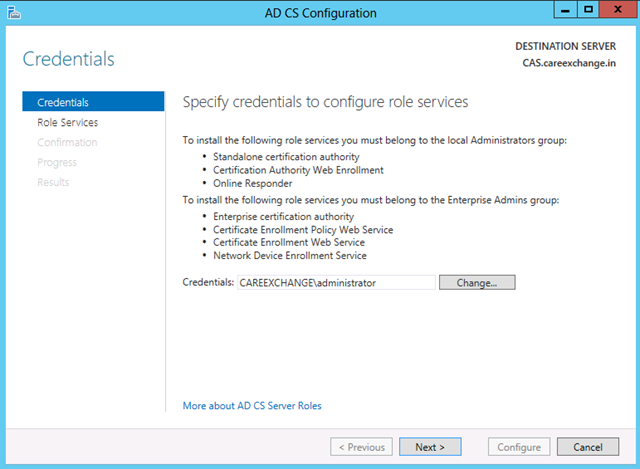

To Configure Active Directory Certificate Services

Choose the Exclamation Mark on the Flag

Choose Next

Choose

Certificate Authority

Certification Authority Web Enrollment

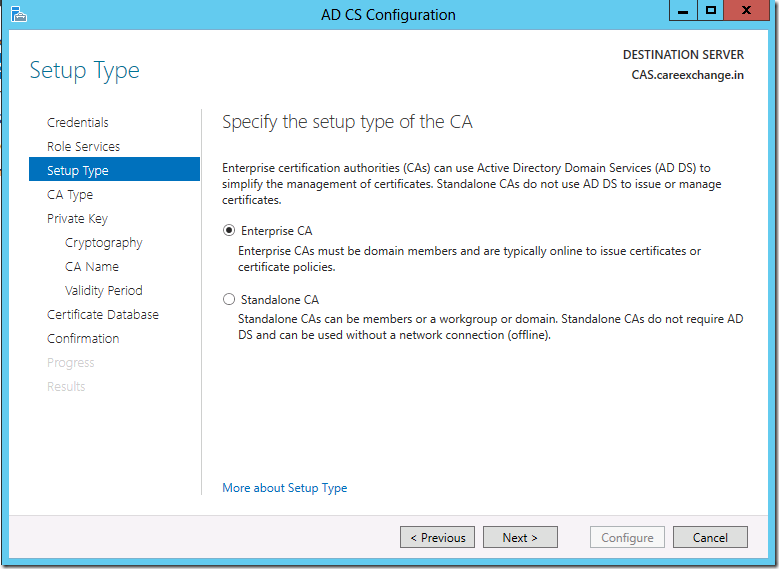

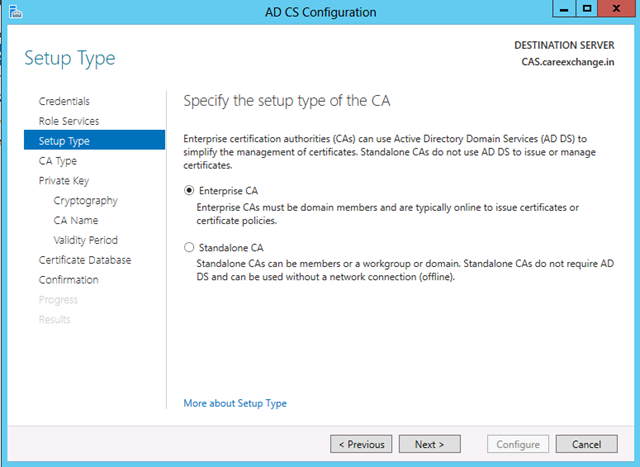

Choose Enterprise

Step 4:
Choose Root CA

Step 5:
Create a new Private key

Step 6:

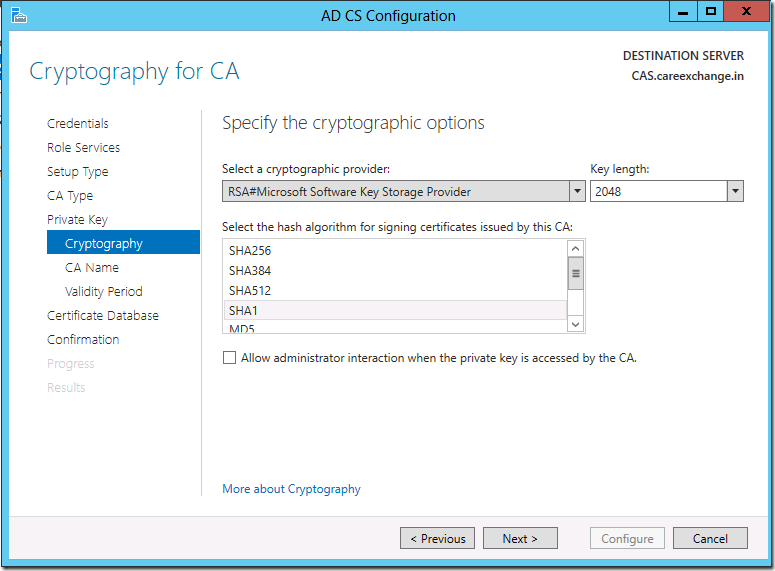

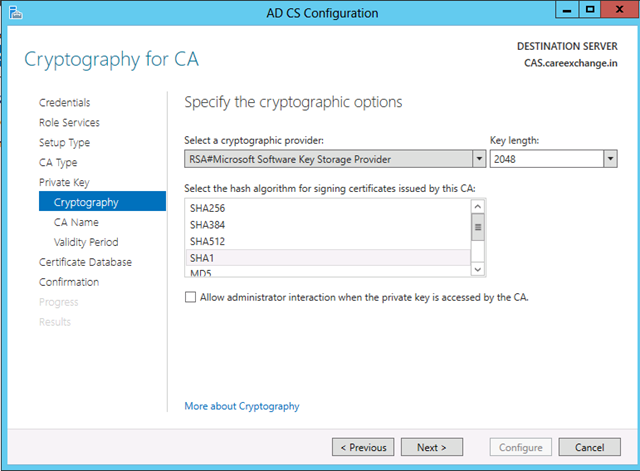

Have this Default with 2048 key Character length

Updated === Its recommended to use SHA256 as SHA1 is retiring.

To Upgrade your existing internal CA –

certutil -setreg ca\csp\CNGHashAlgorithm SHA256

Step 7:

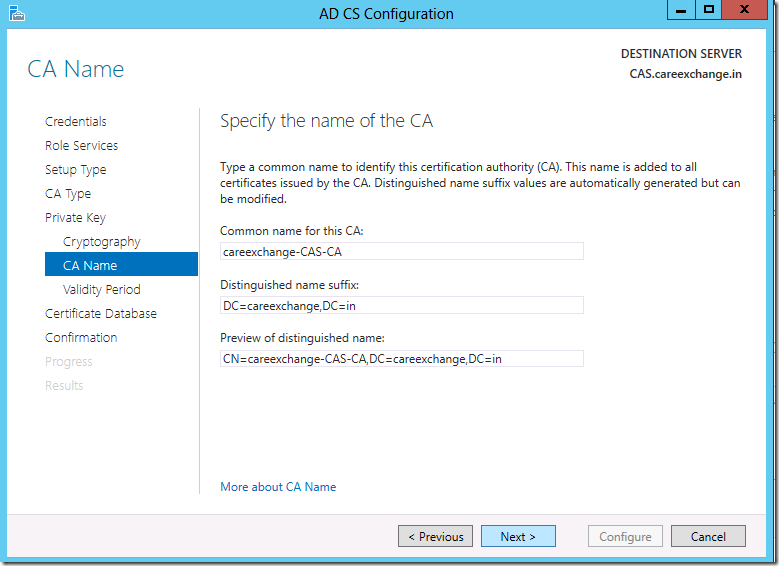

Click Next

Step 8:

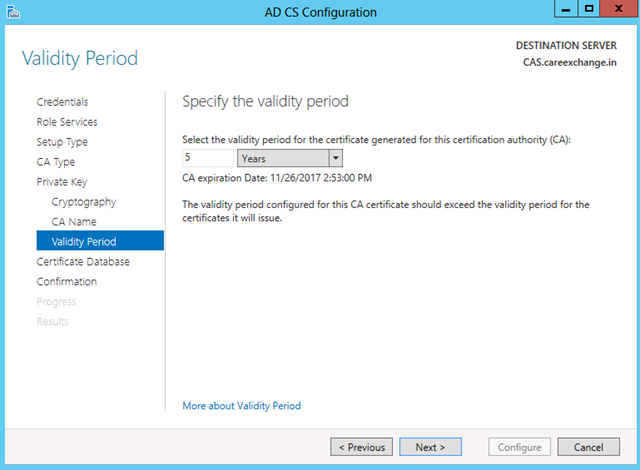

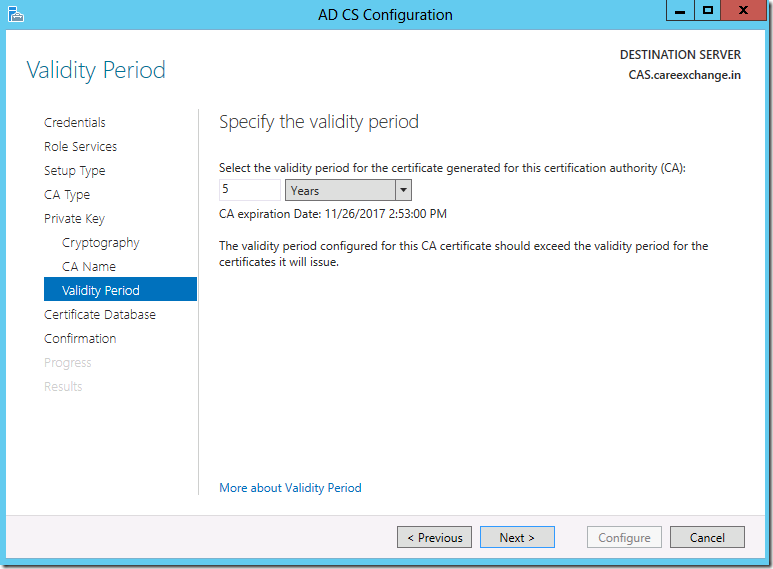

By Default Certificate is valid for 5 years , Don’t make any changes on it , Click next

Step 9:

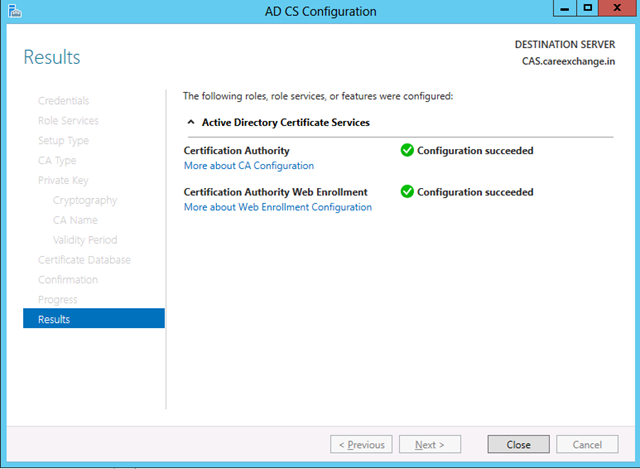

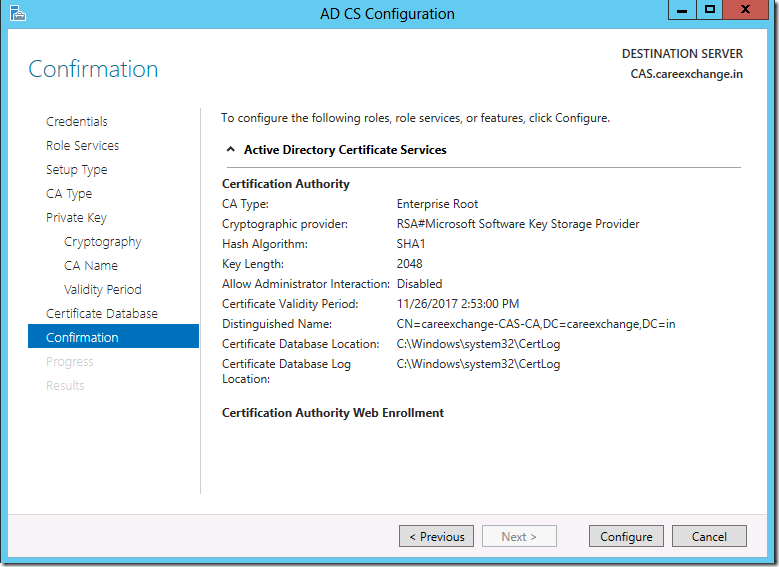

Choose Configure

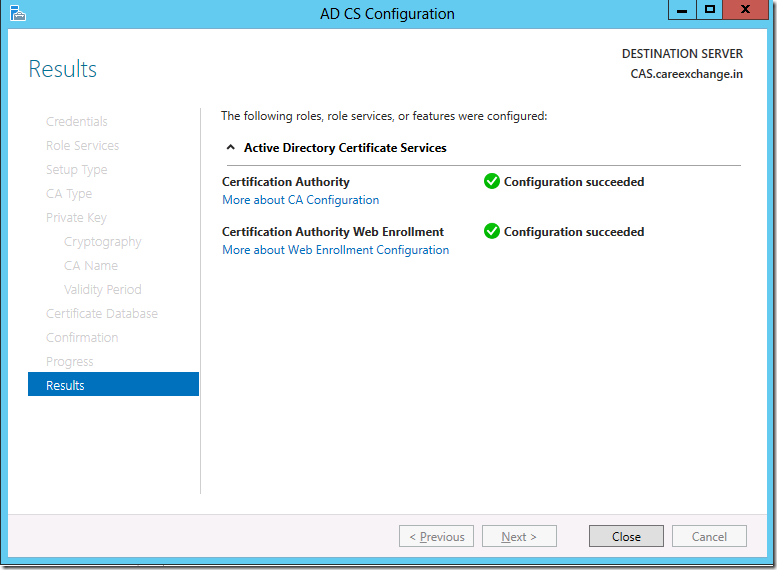

Installing and Configuring is Done.

Let us see how to Request a Create a Simple Cert from Internal Certificate Authority

Step 10:

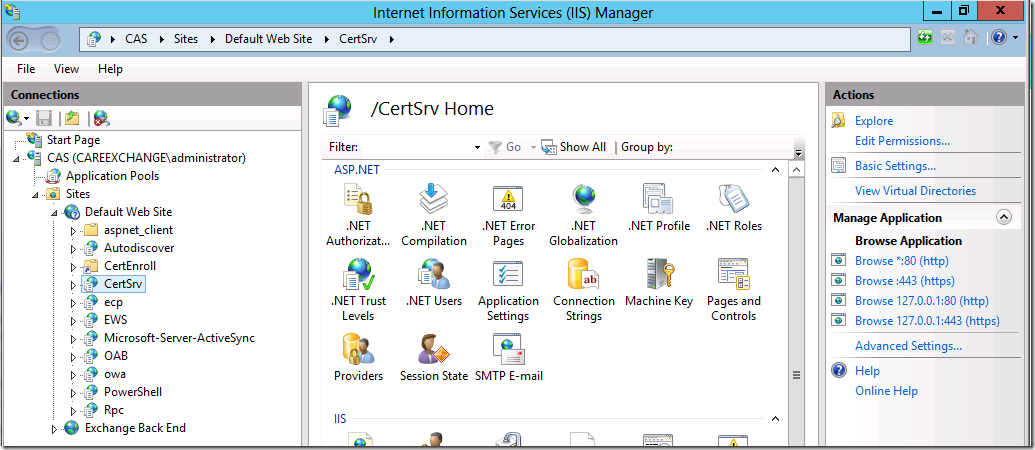

Now if you Open IIS manager , you will see “CertSrv” a Virtual Directory Created ,

Use the right side column “Browse *.443(https)

Note :

If you don’t see a “Browse *.443(https) , It means binding is not there. As my Example as Exchange 2013 , Exchange added the binding.

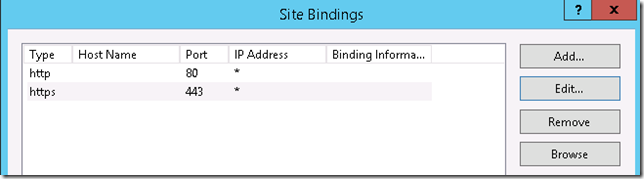

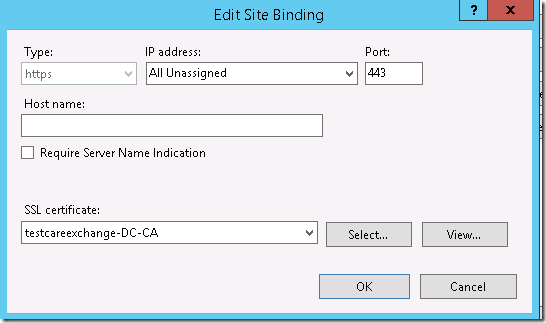

To add binding – Right Click on Default Web Site – Click on Edit Bindings

Click on ADD

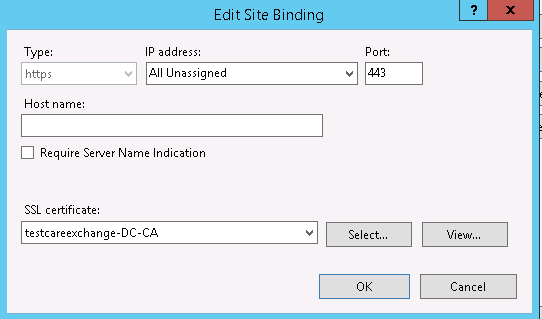

HTTPS – 443 – Choose the CA Cert

Now you can see 443 in your website.

Step 11:

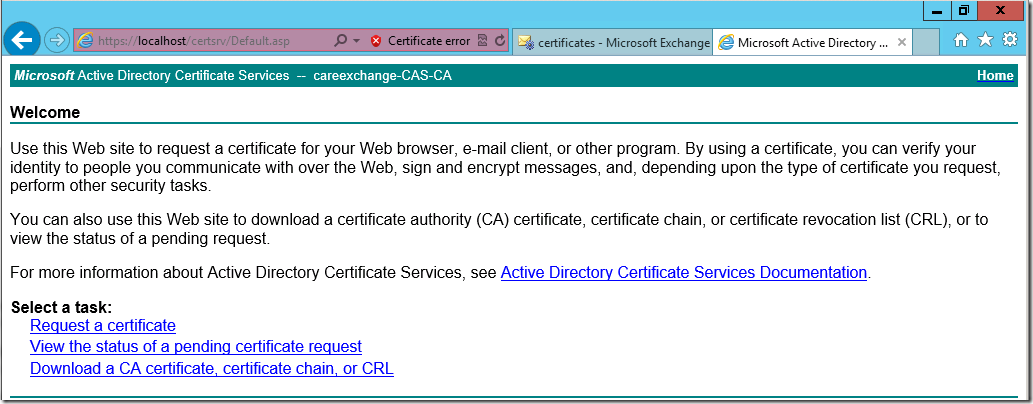

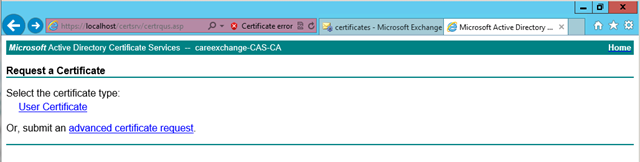

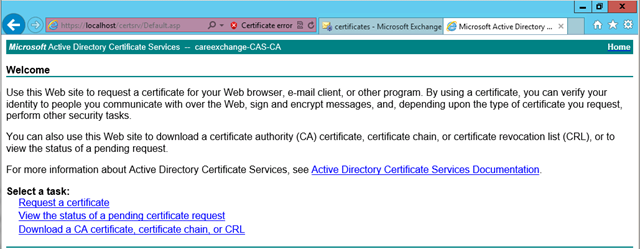

You would see a page like this , Choose Request a Certificate

Step 12:

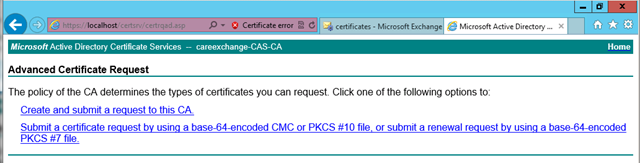

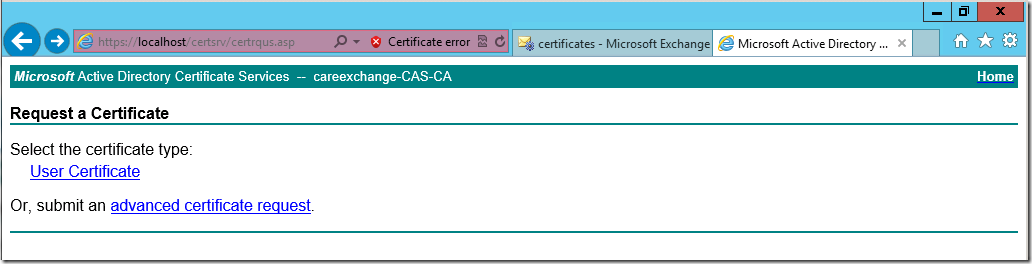

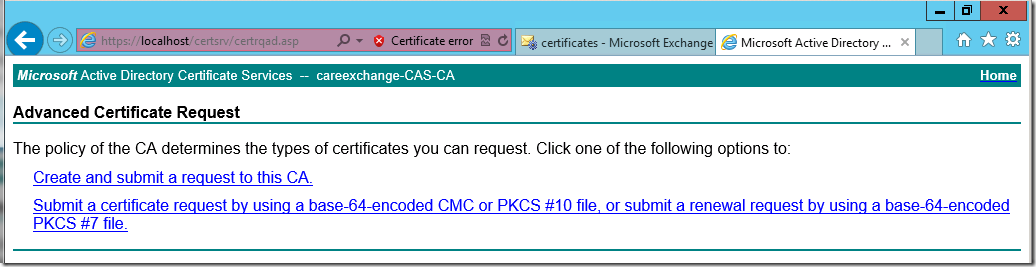

Click on Advanced Certificate Request

Step 13:
Choose the Second one
Submit a certificate request by using a base-64-Encoded CMC

Step 14:

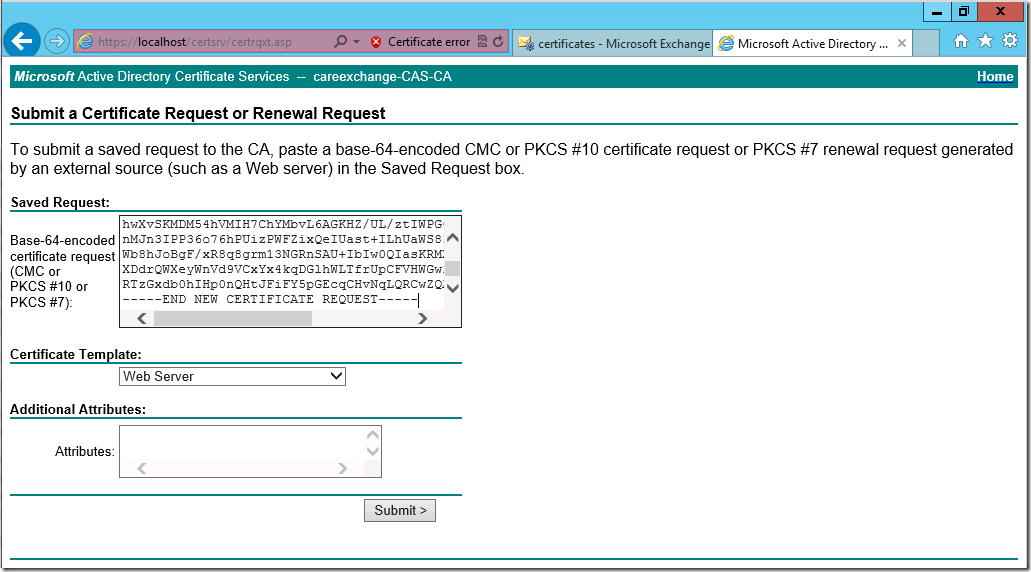

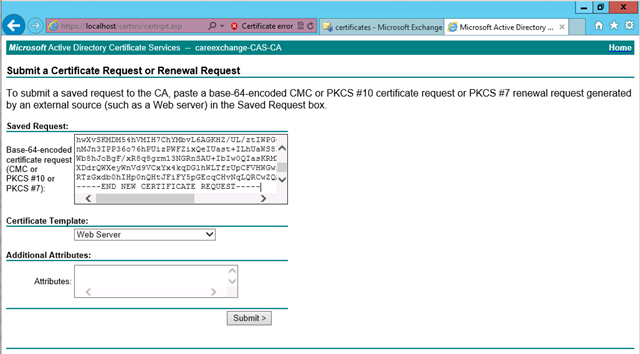

Now Copy the Note pad – You have to generate a Certificate Request from the application. For example how we are doing in exchange server

https://www.azure365pro.com/how-to-create-an-ssl-certificate-request-for-exchange-server-2013/

Or you can use https://www.digicert.com/util/
Choose Template : WebServer

Step 15:

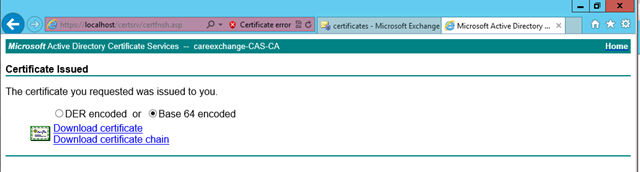

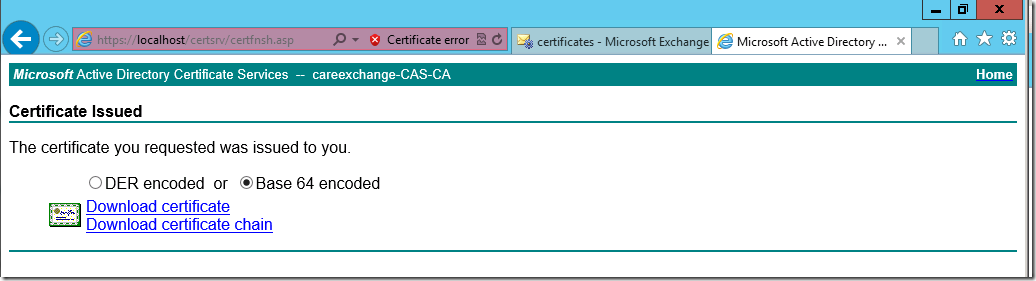

Choose “Base 64 encoded”

Step 16:

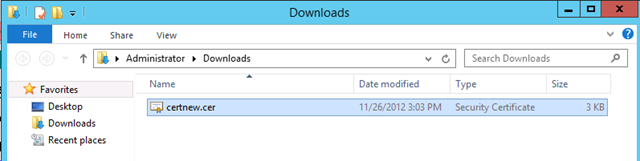

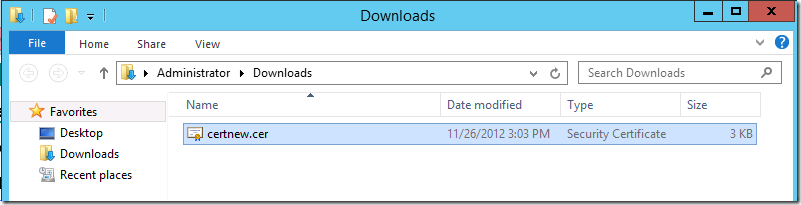

Save the Certificate
