How to Install Exchange 2013 Sp1 on Windows Server 2012 R2

By Satheshwaran Manoharan

July 1, 2014

23

4271

Updated Version

Let us see How to Install Exchange 2013 Sp1 on Windows Server 2012 R2

You can Download the Exchange Setup Sp1 from the Below Link

Microsoft Exchange Server 2013 Service Pack 1 (SP1)

http://www.microsoft.com/en-in/download/details.aspx?id=41994

——-

Note in Exchange 2013 you can use the Latest CU Setup for New installations.

Cumulative Update 8 for Exchange Server 2013 (KB3030080)

https://www.microsoft.com/en-us/download/details.aspx?id=46373

——

Step 1:

To Prepare Active Directory

Install the Below Feature

Open Windows PowerShell.

Install-WindowsFeature RSAT-ADDS

Step 2:

Am Going to Install all roles in the Scenario

Open Windows PowerShell

Install-WindowsFeature AS-HTTP-Activation, Desktop-Experience, NET-Framework-45-Features, RPC-over-HTTP-proxy, RSAT-Clustering, RSAT-Clustering-CmdInterface, RSAT-Clustering-Mgmt, RSAT-Clustering-PowerShell, Web-Mgmt-Console, WAS-Process-Model, Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth, Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging, Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service, Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression, Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation

# Run Restart-Computer to Reboot the Server

Step 3:

Download and Install

Unified Communications Managed API 4.0 Runtime

http://www.microsoft.com/en-us/download/details.aspx?id=34992

Step 4:

Preparing Active Directory

Open Windows PowerShell

Browse to Setup Location

Run .

.\setup /Preparead /IAcceptExchangeServerLicenseTerms /OrganizationName:"Enter Exchange Org Name"

Note : If you are already in a Exchange Organization – Remove /OrganizationName Parameter

Step 5:

Preparing Schema

Open Windows PowerShell

Browse to Setup Location

Run .

.\setup /PrepareSchema /IAcceptExchangeServerLicenseTerms

Step 6:

Preparing Domain

Open Windows PowerShell

Browse to Setup Location

Run .

.\setup /Preparedomain /IAcceptExchangeServerLicenseTerms

Note :

If you are in a Child domain Scenario

Run

.\setup /Preparealldomains /IAcceptExchangeServerLicenseTerms

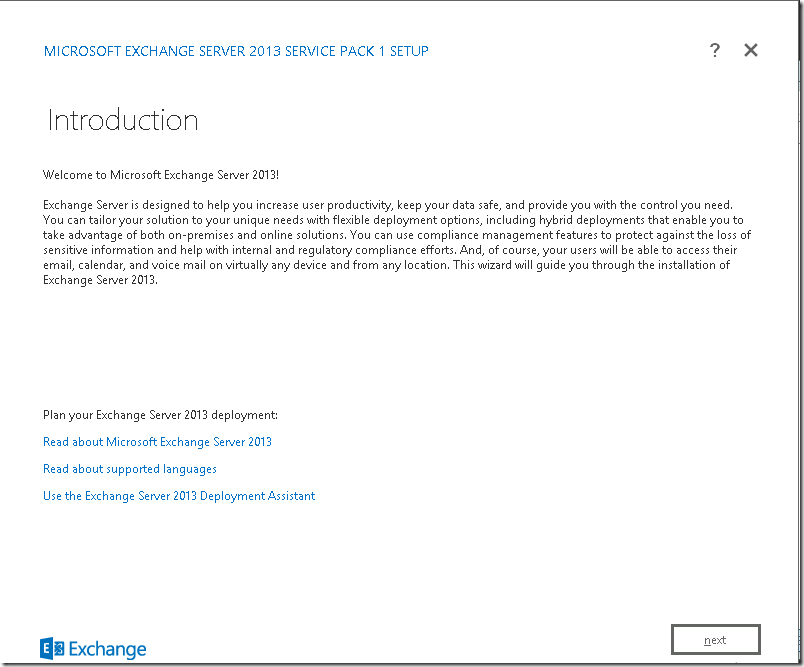

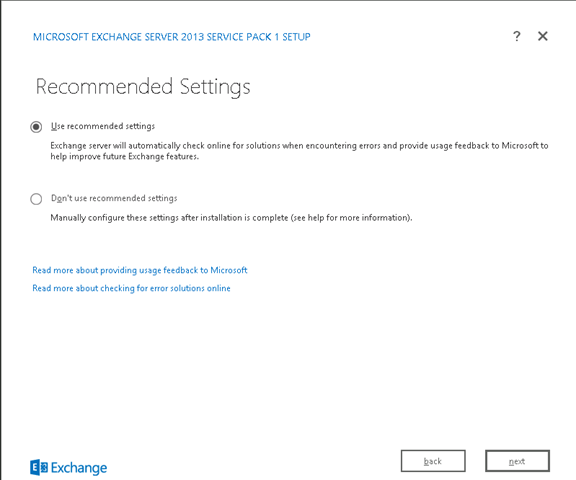

Step 7:

Choose Next

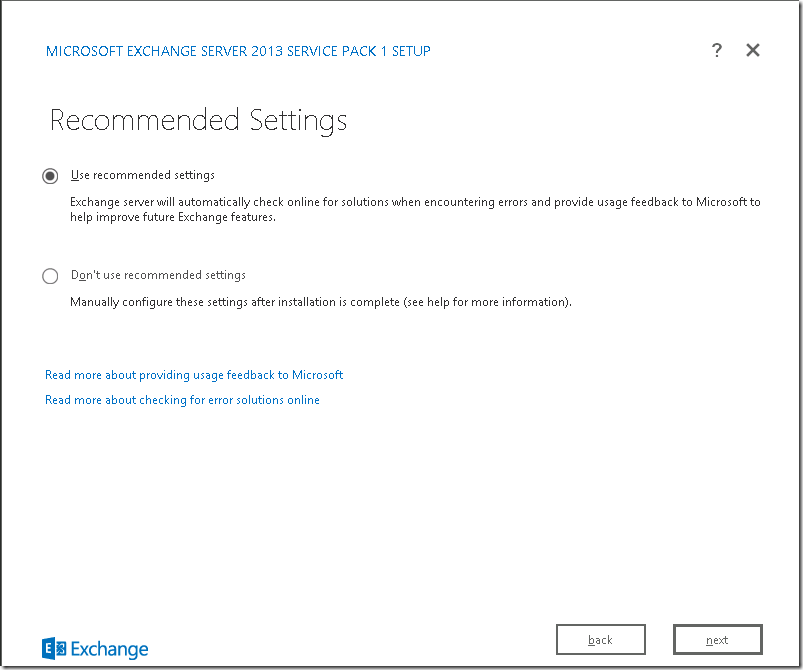

Step 7:

Choose Next

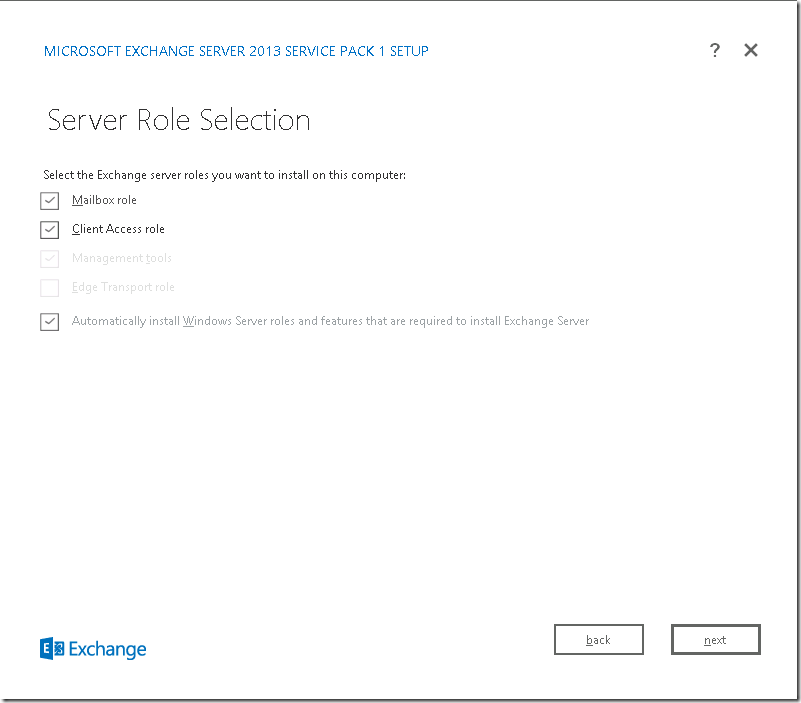

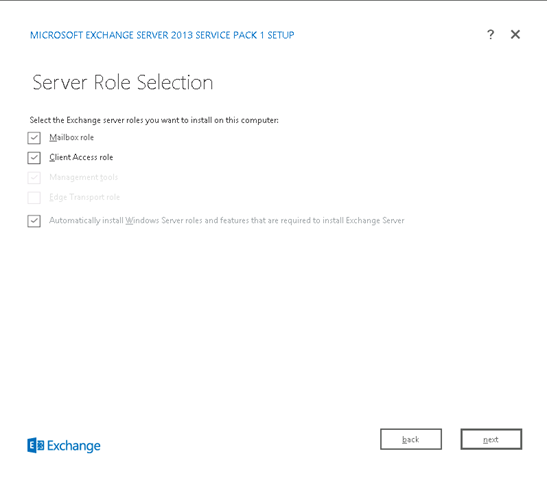

Step 8:

Choose the Roles

Choose Next

Note : You can see “Edge Transport Role is added” Which can be installed on a separate Server.

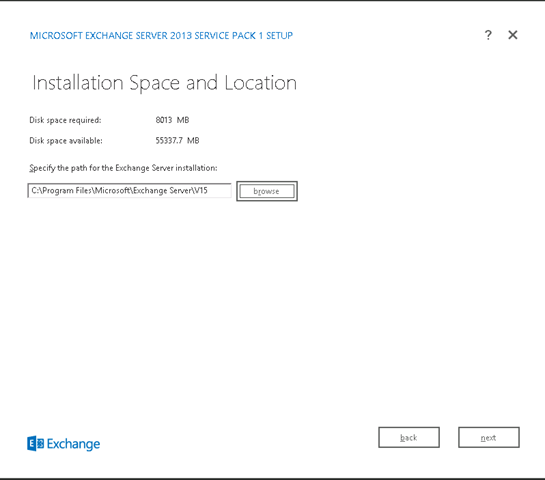

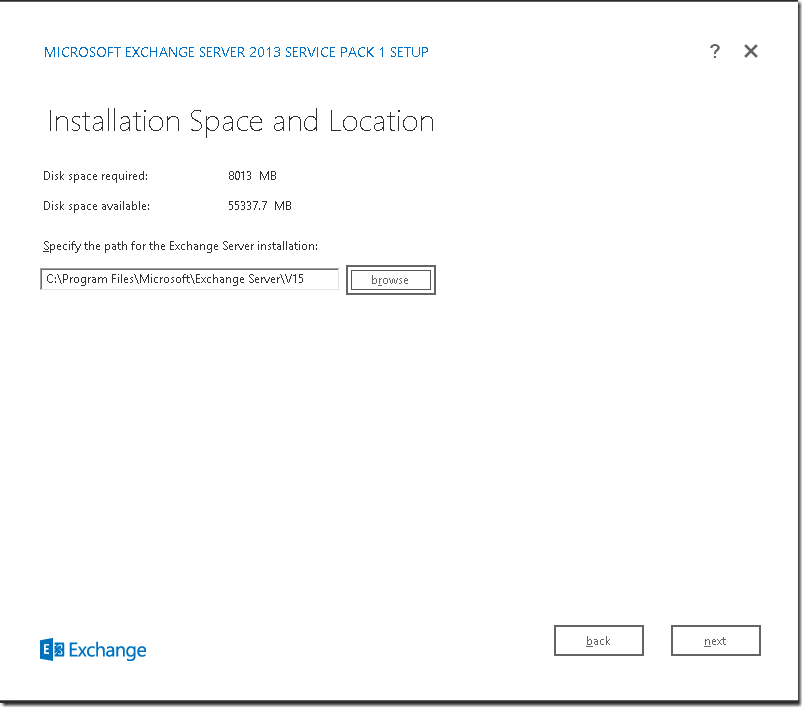

Step 9:

Choose Next

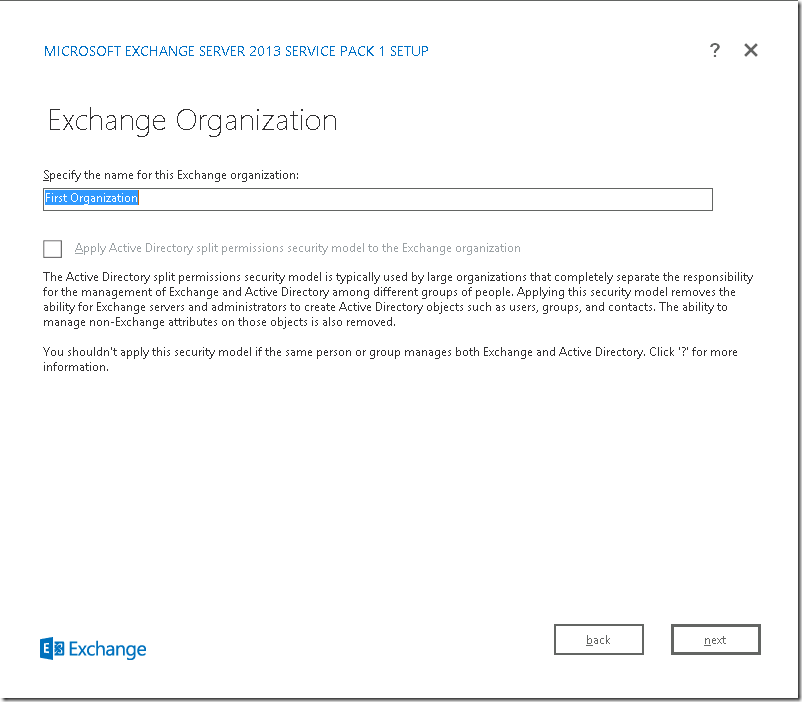

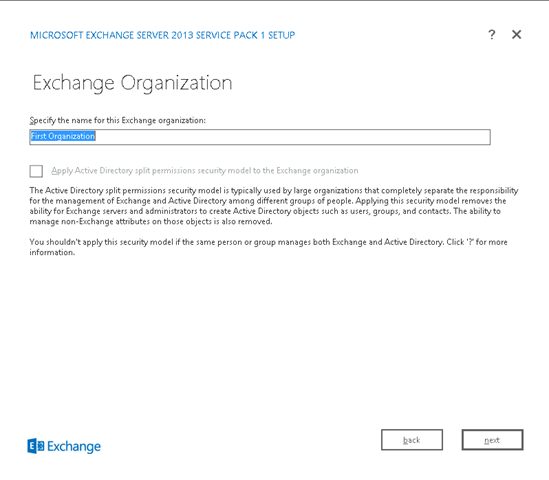

Step 10:

Choose Next

If you already Did “Step 4” you won’t see this Page. As Already Exchange Org is created

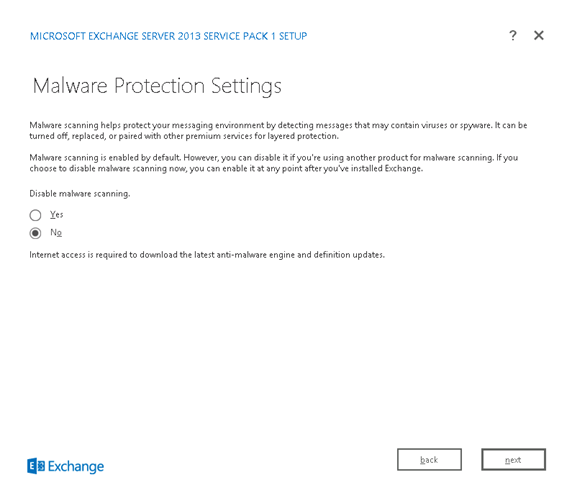

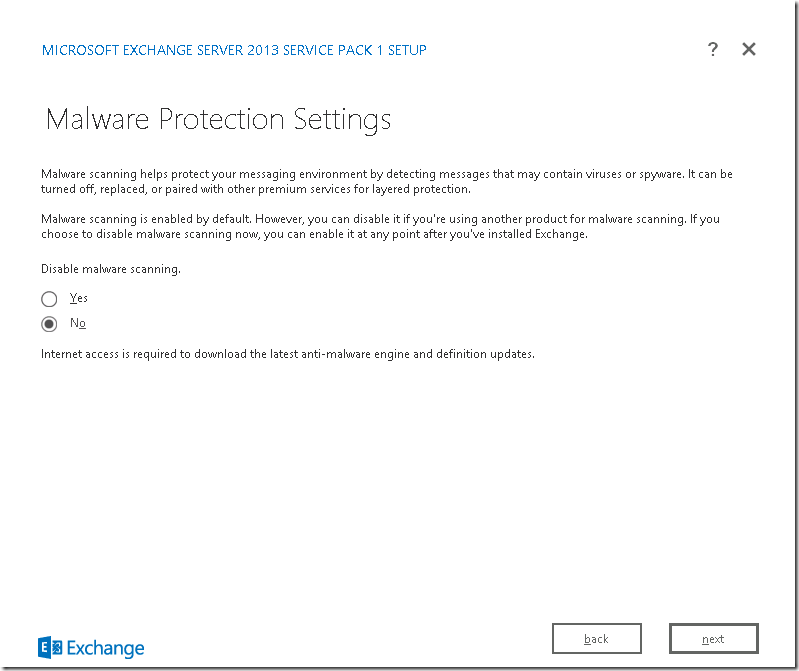

Step 11:

Choose No

&

Choose Next

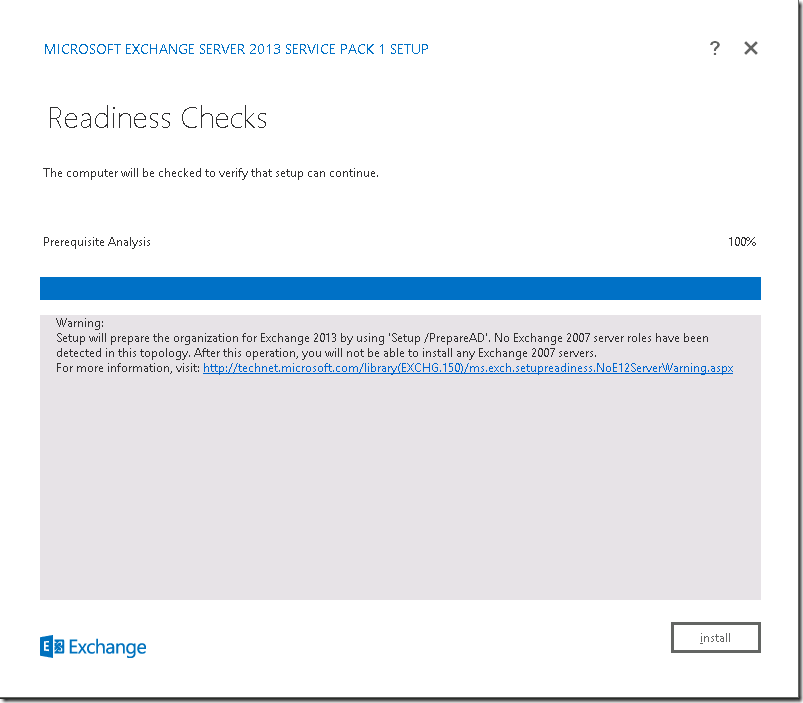

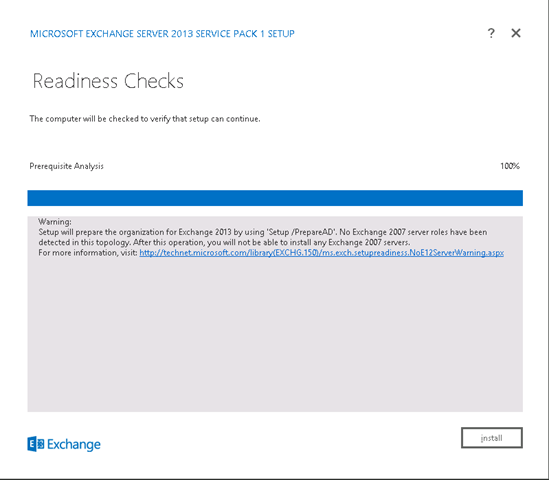

Step 10:

Choose Install

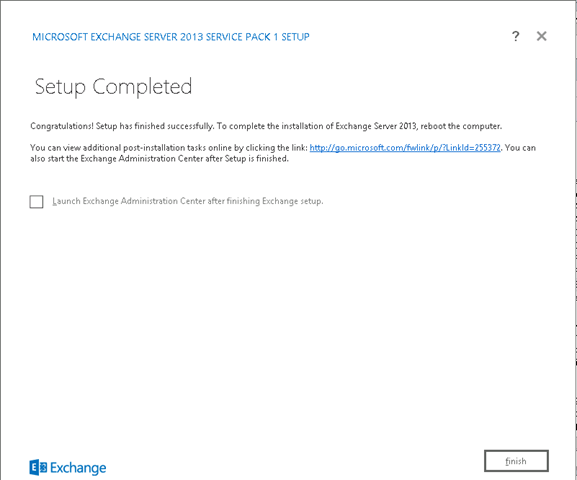

Step 11:

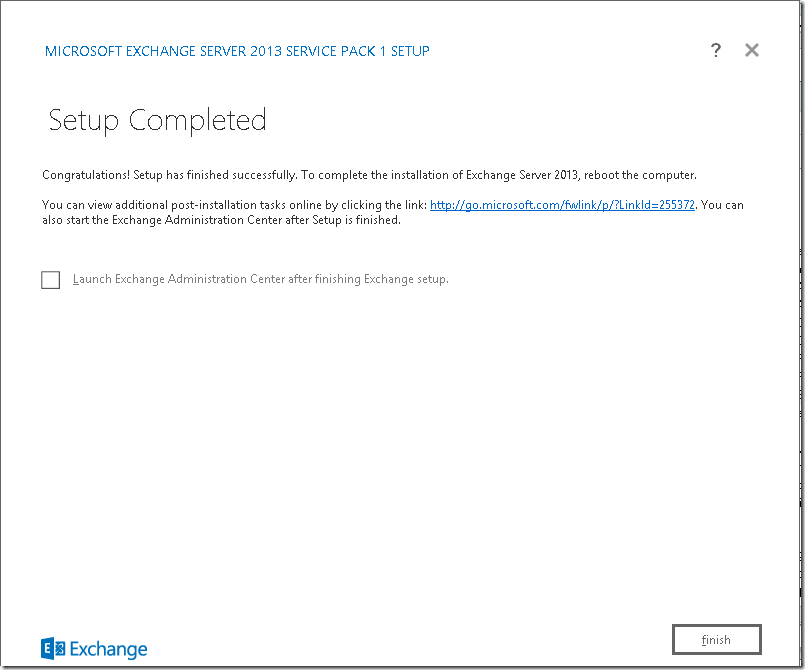

Exchange 2013 SP1 Cu8 Installed Successfully !!
