Rapid Migration Guide from Exchange 2003 to Exchange 2010

After a short run we came up with this plan, where getting migration steps in one place and doing it in a systematic procedure.

This Plan should be more suitable for Medium and Small Business environments

Meeting these requirements you can install Exchange 2010:

# Exchange 5.5 Should be completely removed

# Windows Server 2003 native Domain Functional Level and Forest functional level

Domain Functional Level should be at least 2003 Native

https://www.azure365pro.com/how-to-raise-domain-functional-level/

How to Raise Forest Functional Level

https://www.azure365pro.com/how-to-raise-forest-functional-level/

# Exchange 2003 Server has to be in Native mode

https://www.azure365pro.com/how-to-change-exchange-2003-server-to-native-mode/

Now you can install Exchange 2010

Step 1:

Installing Exchange 2010 Sp2 on Windows Server 2008 R2 Sp1 (Coexistence)

https://www.azure365pro.com/installing-exchange-2010-sp2-on-windows-server-2008-r2-sp1/

Step 2:

Creating Send Connector in Exchange 2010 to Send Mails to Internet

https://www.azure365pro.com/creating-send-connector-in-exchange-2010/

Step 3:

Configure Receive Connector in Exchange 2010 to receive Mails to Internet

https://www.azure365pro.com/configure-receive-connector-in-exchange-2010/

Step 4:

Configure Outlook Web App, ActiveSync, Exchange Control Panel (ECP), Configure Outlook Anywhere

https://www.azure365pro.com/configuring-client-access-server-role-migrating-from-exchange-2003-to-exchange-2010/

Configuring Certificates –

3^rd Party –

https://www.azure365pro.com/configuring-3rd-party-exchange-certificate-in-exchange-2010/

Self-Signed –

https://www.azure365pro.com/how-to-use-a-self-signed-certificate-in-exchange-2010/

Step 5:

How to Move offline address book from Exchange 2003 to Exchange 2010

https://www.azure365pro.com/how-to-move-offline-address-book-from-exchange-2003-to-exchange-2010/

Step 6:

Upgrading Email Address Policies and Address lists from Exchange 2003 to Exchange 2010

https://www.azure365pro.com/upgrading-email-address-policies-and-address-lists-from-exchange-2003-to-exchange-2010/

Step7:

Moving Mailboxes from Exchange 2003 to Exchange 2010

https://www.azure365pro.com/moving-mailboxes-from-exchange-2003-to-exchange-2010/

Step 8:

Moving Public Folders from Exchange 2003 to Exchange 2010

https://www.azure365pro.com/moving-public-folders-from-exchange-2003-to-exchange-2010/

Step 9:

Configure your firewall rules to Exchange 2010 Server (if no smart hosts used)

Public IP NAT to Exchange 2010 IP

If you’re using smart hosts like barracuda, Change it in the (Smart host) barracuda settings

Step 10:

Remove Recipient Update Service

https://www.azure365pro.com/removing-recipient-update-services-using-adsiedit-msc/

Step 11:

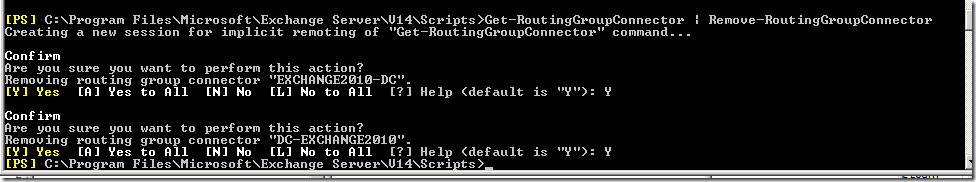

Remove Routing Group Connector

Get-RoutingGroupConnector | Remove-RoutingGroupConnector

Say “Y” for Confirmation

Step 12:

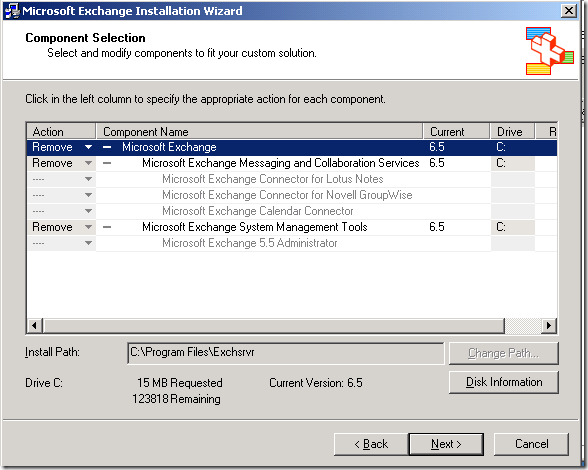

Uninstall Exchange Server 2003

Open Add or remove programs – Remove Exchange 2003

If that fails

Remove Exchange 2003 manually

http://support.microsoft.com/kb/833396

Great !!

You learnt the rapid migration Process from Exchange 2003 to Exchange 2010

Download the Rapid Migration Guide

Happy Migration !!
