Renewing ADFS Token Signing Certificate

Token signing certificates are standard X509 certificates that are used to securely sign all tokens that the federation server issues. Token decryption certificates are standard X509 certificates that are used to decrypt any incoming tokens. They are also published in federation metadata. Single Sign-on breaks if it expires. In my case, it’s used for several single sign-on Apps like Zscaler / Cisco Jabber. Let’s see how to Extend them to 1 year to 3 years and renew the same and update in zscaler.

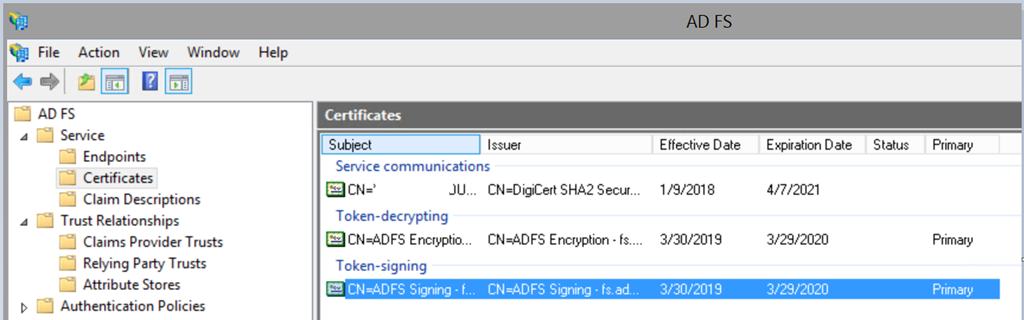

ADFS Signing Certificate – Certificates

Let’s Extend the duration from 365 to 1095 days which is 3 years

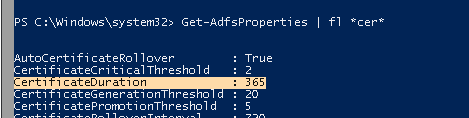

Get-AdfsProperties | fl *cer*

Set-AdfsProperties -CertificateDuration 1095

Update-AdfsCertificate -CertificateType Token-Decrypting -urgent

Update-AdfsCertificate -CertificateType Token-Decrypting -urgent

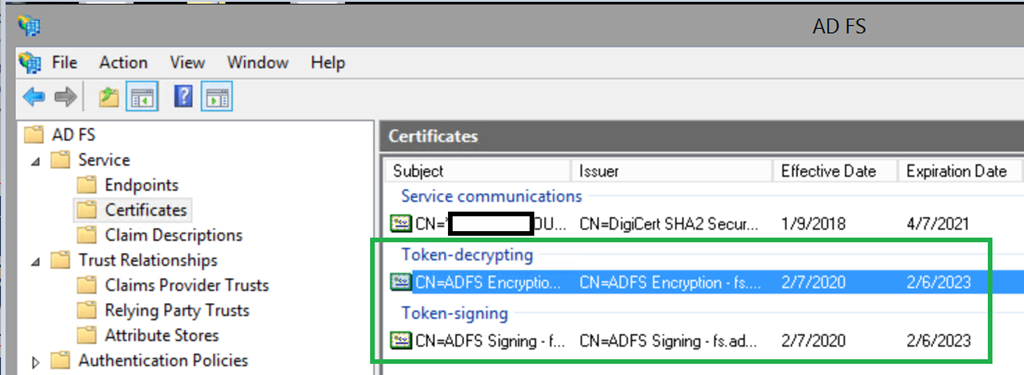

Certificates are renewed now.

• Token-Decrypting Certificate
• Token-Signing Certificate

If you wish to disable auto certificate rollover  (let’s not do it. Just FYI )

Set-ADFSProperties -AutoCertificateRollover $false

Replacing SSL Certificate – Set Service Communication Certificate to new one.

Open MMC and Open Certificate Console of Local Machine and go to new certificate and managed private keys. Copy the same permission the old certificate had the service account in my case it was adfs admin and ran

Set-AdfsSslCertificate -Thumbprint "xxxxx"

it added drs and adfssrv permission on private keys

Renewing ADFS Proxy Certificate –

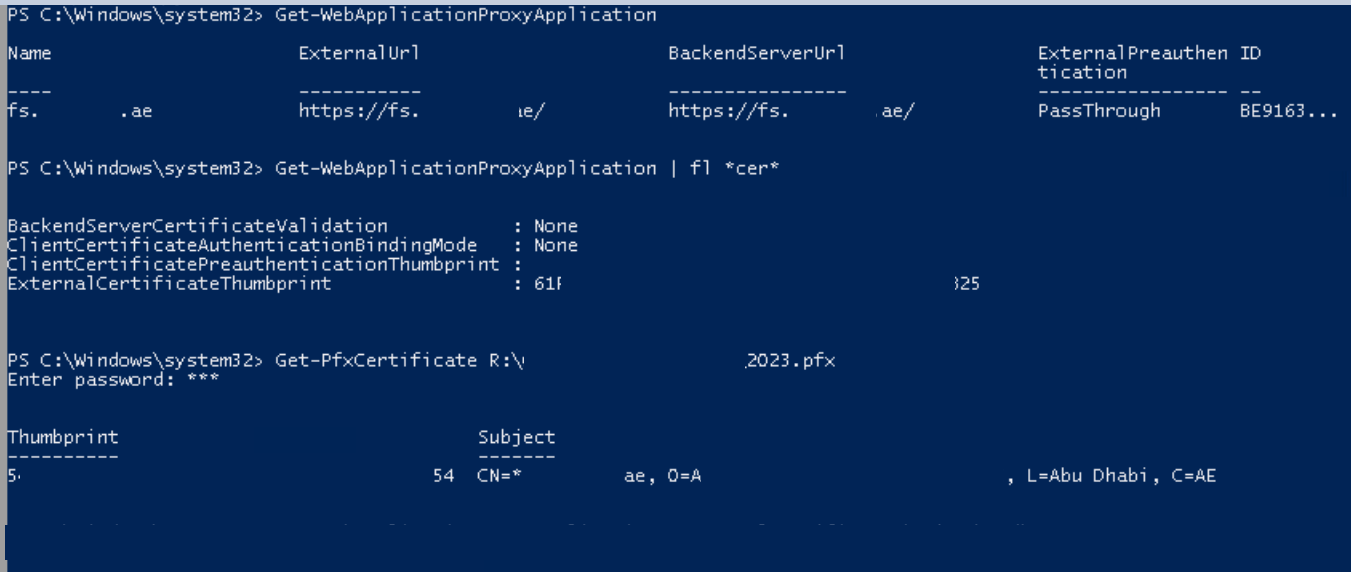

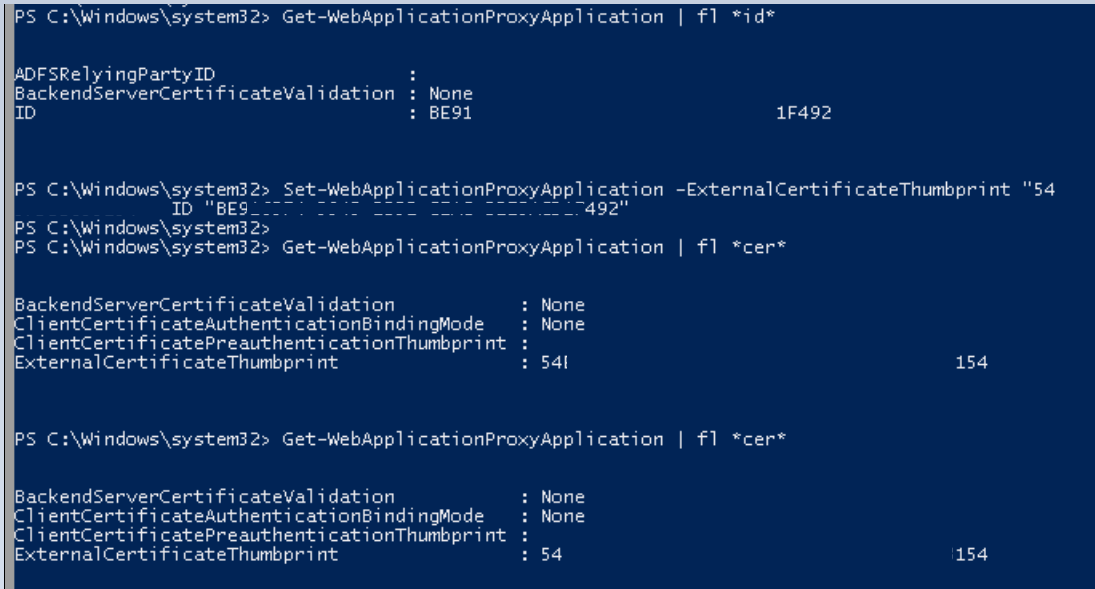

Get-WebApplicationProxyApplication | Fl *cer*,*id*

Get-Pfxcertificate c:\cert.pfx

Use above command to gain thumbprint value

Set-WebApplicationProxyApplication -ExternalCertificateThumbprint "xxx" -ID "xxx"

In my case, I need to use this in my Zscaler Forward proxy. Let’s see how to convert to PEM and use it.

Right Click on ADFS Signing Certificate

Copy to File

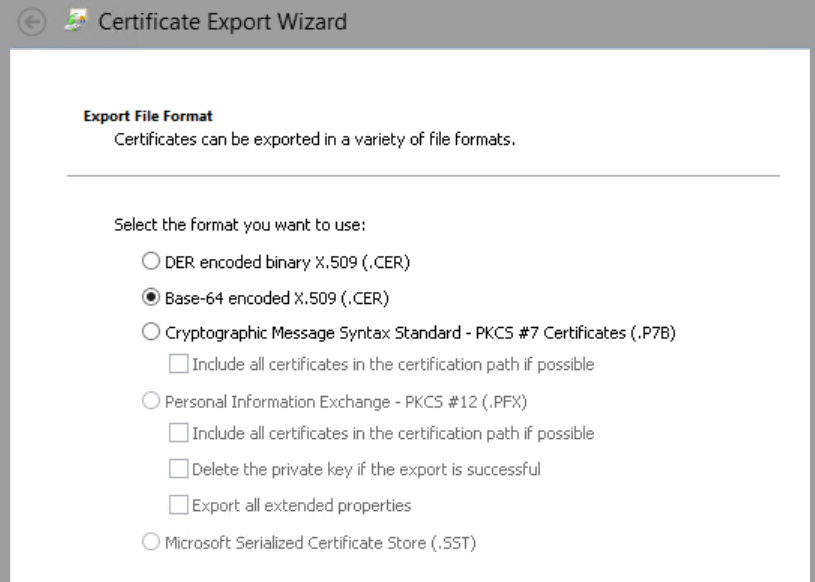

Choose Base-64 encoded X.509 (.CER)

Use a test Linux server or anything that has open SSL.

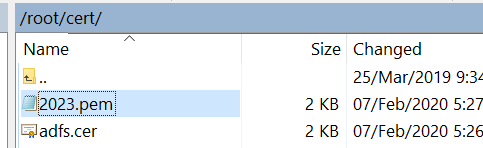

Took the file out via WinSCP

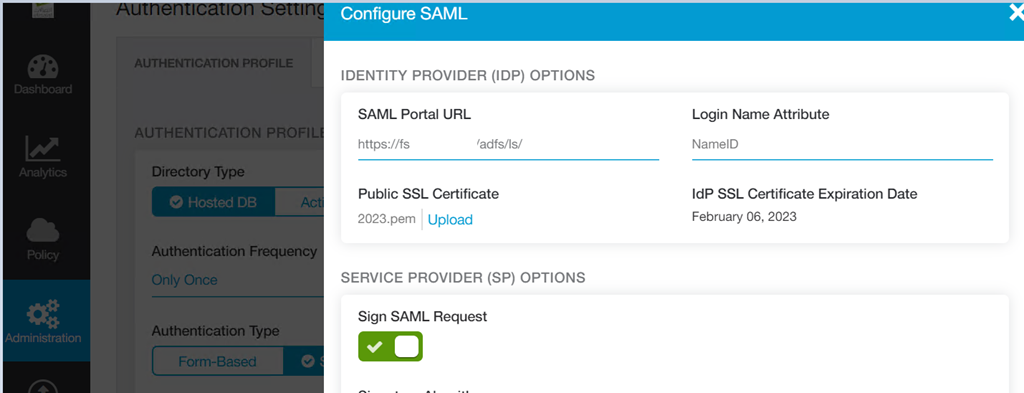

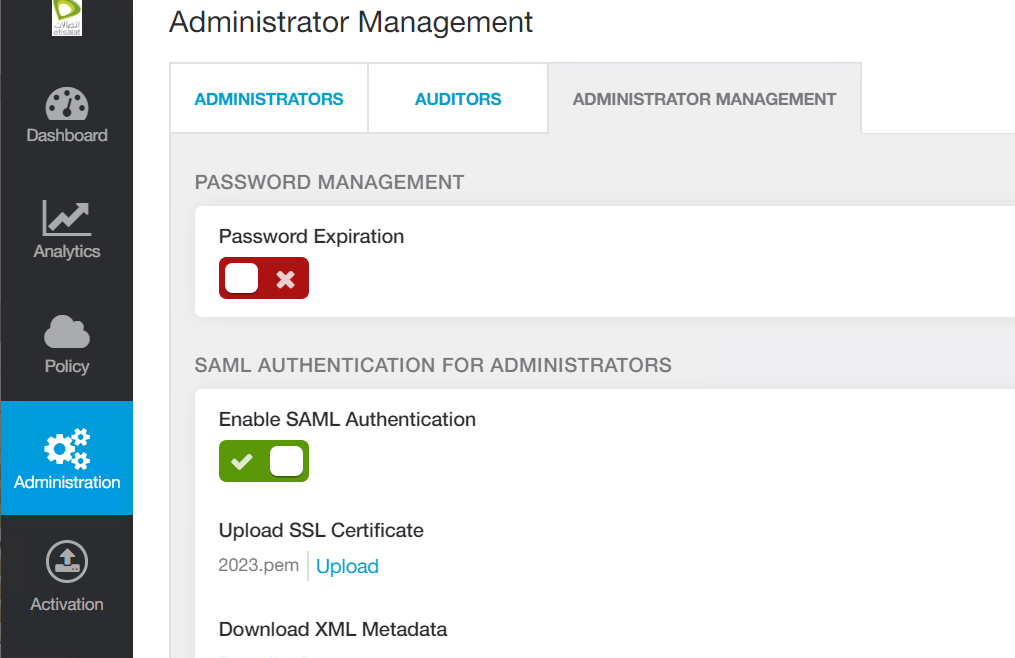

Update on Authentication Settings – Administrator Management –

Administration – Authentication Settings.
